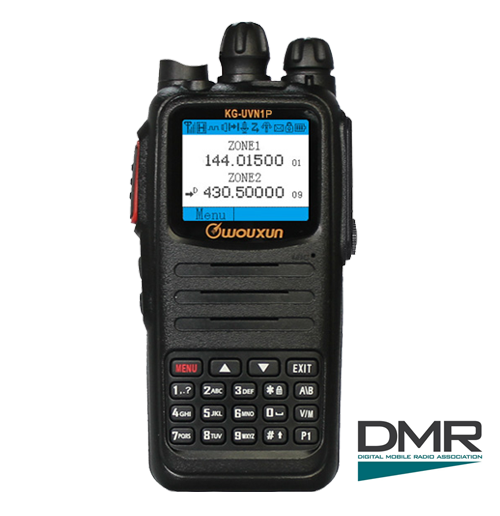

UV Dual Band , Digital and Analogue Two Way Radio KG-UVN1P

kg-uvn1p

Product Resource And Related Webpage Link

	Send Radio Order Message

kg-uvn1p

kg-uvn1

kg-uvn1

kg-uvn1

MAIN FUNCTION

TECHNICAL SPECIFICATION

ACCESSORY

CUSTOMER REVIEW

PRODUCT LIST

MAIN FUNCTIONS

83 Zones , Each Zone Support 64 Channels
160000 DMR Contacts
255 Receiving Groups
255 Scanning Groups
Radio ID
Radio TX Contacts
Duan Band and Dual Display
Radio Color Code
Support Frequency Mode
Program Key
Digital Voice Encryption
Emergency Alarm
VOX Function
Priority Channel
Scan TX Designated Channel
Low Battery Power Off
One Touch Access / Talk Around
Radio Program Password
Menu Encryption or Menu Hide

Power Save Mode
Group Scan
Tail Elimination
Text Message
Radio Disable or Enable
Lone Work
ARTS Function
Flash Light
Call Alert
CTCSS Encoding and Decoding , Support Non Standard
Digital Channel Recording , Continuous Record 8 Hours
Play Recording File
Customerized Radio Interface
DTMF Encoding and Decoding
Transmit Time-out Alert
FM Radio
Fimware Upgradable

TECHNICAL SPECIFICATION

Intergration
Frequency Range	136-174MHz , 400-520MHz
Channel Number	5312
Operating Temperature	-20℃～+40℃
Antenna Resistance	50Ω
Working Voltage	7.4 VDC
Weight	300 g
Size	64 x 41 x 130 (mm)

Receiver
Analog Receive Sensitivity	0.25µV@12dB SINAD
Digital Receive Sensitivity	0.25µV(BER:5%)
Adjacent Channel Selectivity	≤60dB@12.5KHz
Audio Response	+1dB~-3dB
Audio Distortion	≤5%
Audio Power	1W
Inter Modulation	≥65dB

Transmitter
FM Modulation	12.5KHz : 11KOF3E , 25KHz : 16KOF3E
4FSK Digit Modulation	12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data+Voice) : 7K60EXE
Adjancent Channel Power	≤-60dB
Frequency Stability	±1 PPM
Audio Distortion	≤5%
Vocoder Type	AMBE+2TM
Audio Response	+1dB~-3dB
Digital Protocol	ETSI-TS102 , 361-1 , 361-2 , 361-3
Bit Error Ratio	≤5%
Modulation Limit	±2.5KHz@12.5KHz
Output Power	UHF(H : 4W , L : 1W) , VHF(H : 5W , L : 1W)

STANDARD ACCESSORY

BLO-016		CHA-025		CHA-025		ANO-033

Li-ion Battery Pack , 2600mAh		Charger		Power Supply Adaptor		Antenna

OTH-005		OTH-001

Hand Strap		Belt Clip

OPTIONAL ACCESSORY

BLO-011		CHA-027		LCO-003		PCO-008

Li-ion Battery Pack , 3200mAh		Six-way Charger		Leather Case		USB Programming Cable

HEO-001		HEO-002		HEO-003		HEO-005

Headset		Air Conduit Earphone		Headset		Air Conduit Earphone

SMO-001		SMO-002		CCO-002		ELO-005

Speaker		Speaker		Car Charger		Eliminator

ANO-012		ANO-038		AAO-001		AAO-002

Antenna		Antenna		SL16 Antenna Adaptor		BNC Antenna Adaptor
