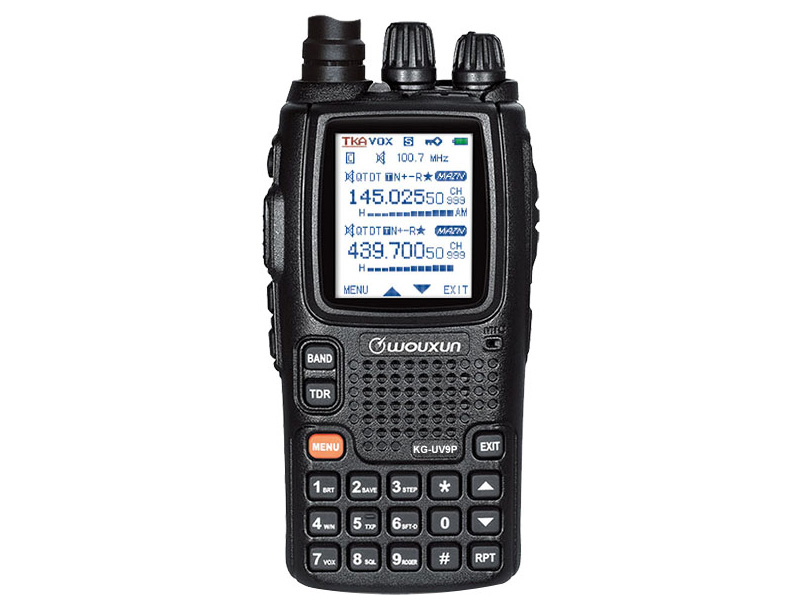

High Power Output , Two Way Radio KG-UV9P

.

kg-uv9p

Buy Radio Now
RADIO  FUNCTION
  • Cross Band Repeater
  • Large Color Screen
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band
  • Scanning on Limiting Frequency
  • Channel Groups Scanning
  • QT / DQT Encoding And Decoding , QT / DQT Scan
  • Non-Standard CTCSS Can be Set Arbitrarily
  • VOX And SOS function
  • Reverse Frequency
  • Mplitude-Frequency PTT Settings
  • Incoming Message Display Caller ID
  • DTMF Encoding / Decoding
  • All Calls , Group Calls And Selective Calls
  • Prior Remote Alarmity Scan
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Chinese / English Screen Display
  • Chinese / English Voice Guide
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse : 1000 / 1450 / 1750 / 2100 Hz
  • Stopwatch
  • Multi Definition For Sidekeys
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
General
   Frequency Range    Suitable For Different Countries or Areas
   TX = 136-174 / 400-512 MHz
   RX = 76-108 / 108-136 MHz ( Air Ground )
            136-180 / 230-250 / 350-400 MHz
            400-512 / 700-985 MHz
   Frequency Step 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20 ℃ ~ +40 ℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
   Weight 490 G
   Dimension 130 x 57 x 35 MM
Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5 PPM
   Audio Distortion ≤ 5%
   Output Power UHF : 8W / 5W / 1W , VHF : 10W / 7W / 1W
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB ( 0.3~3KHz ) +1~-3dB ( 0.3~3KHz )
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤ 5%
   Audio Power ≤ 500mW
   Sensitivity   108-136MHz(AM) -106.0dBm SINAD 13dB
  136-180MHz -119.0dBm SINAD 13dB
  230-250MHz -116.0dBm SINAD 13dB
  350-512MHz -119.0dBm SINAD 13dB
  700-986MHz -96.0dBm SINAD 12dB

STANDARD  ACCESSORY
BLO-008

ANO-014

OTH-005

OTH-001
battery BLO-008,Battery

antenna ANO-014,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2000mAh   Antenna   Hand Strap   Belt Clip

CHA-011

CHA-011


charger CHA-011,Desktop-Charger

charger CHA-011,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor
