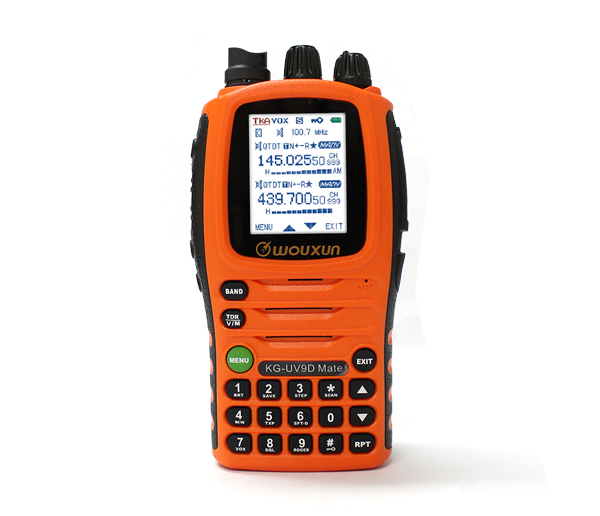

UV Dual Bands , Colorful Shell , Two Way Radio KG-UV9D Mate

wouxun kg-uv9d mate

Product Resource And Related Webpage Link

... Send Radio Order Message

... Share KG-UV9D-MATE  to Your Facebook

... Share KG-WV9D-MATE  to Your Twitter

... Download KG-UV9D-MATE User Manual



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Cross Band Repeater
  • Large Color Screen
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
  • Channel Groups Scanning
  • Memory Channels 999
  • QT / DQT Encoding / Decoding , QT / DQT Scan
  • Non-Standard CTCSS Can be Set Arbitrarily
  • VOX and SOS Function
  • Reverse Frequency
  • Mplitude-frequency PTT Settings
  • Incoming Message Display Caller ID Display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency: 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Multi Definition for Sidekeys

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas

   1 TX: 136-174MHZ(FM)
              400-512MHZ(FM)
    2 RX: 76-108MHZ(FM)
             108-136MHZ (Air Ground)
             136-180MHZ(FM)
             230-250MHZ(FM)
             350-400MHZ(FM)
             400-512MHZ(FM)
             700-985MHZ(FM)

   Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W


STANDARD  ACCESSORY
BLO-012   CHA-011   CHA-011   ANO-011
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 3200mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
