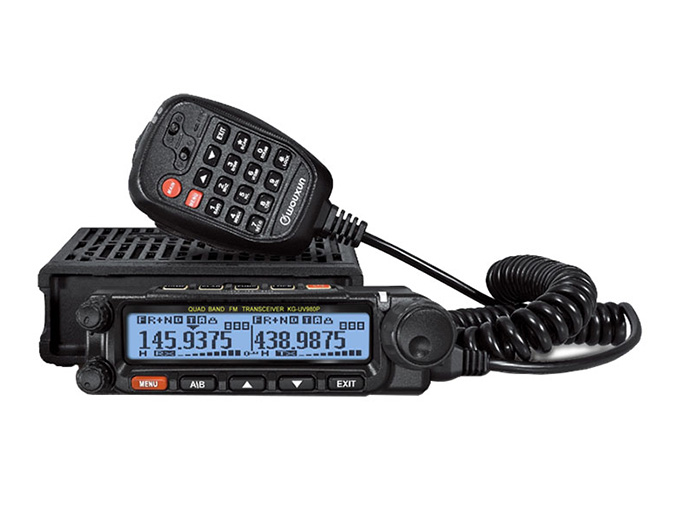

Shortcut Key Front Panel , Quad Bands Transmission , Car Mobile Radio KG-UV980P

kg-uv980p

Product Resource And Related Webpage Link
	Send Personal Order
	Distributor Batch Procurement

MAIN FUNCTION

TECHNICAL SPECIFICATION

ACCESSORY

PRODUCT LIST

MAIN FUNCTIONS

Dual Frequency Display, Dual Independant Operation System : Innovative design for monitoring two frequencies simultaneously, ensuring efficient communication
Eight Bands For Receiving , Four Bands (Including SW) For Transmitting : Wide coverage across various bands to meet diverse communication needs
Twin Band / Same Band Simultaneous Reception : Flexible handling of complex communication environments, never miss any critical information
999 Memory Channels : Easily manage and access your frequently used channels
Detachable Front Panel and Radio Body : Adapts to different scenarios for enhanced operational convenience
QT / DOT Encoding and Decoding : Ensures secure and private communications
Customizable Non-standard CTCSS / DCS Settings : Personalized adjustments for more individualized options
Same Band Repeat on Two Combined Radios : Pairing two devices for same-band repeating transmissions
Dual Track And Multi-Way Loudspeakers : Clear audio output to maintain communication quality
Hand Microphone With DTMF And Loudspeakers : Easy to operate with better communication effect
Caller ID Display : Instantly identify callers to improve communication efficiency
DTMF Encoding And Decoding : More coding options to meet advanced communication needs
Multiple Scanning Modes : Flexibly choose the suitable channel scanning mode
Cross Band Repeater : Extend communication range, ensuring seamless interaction
Group Calls / All Calls / Selective Calls : Meets different communication scenarios
8 Groups of Voice Scrambler : Protects your communication from being intercepted
Priority Channel Scanning : Automatically searches and locks on to important channels
APO Power Management : Smart power management to prolong battery life
Selectable Wide / Narrow Bandwidth : Choose the appropriate signal width as needed
Chinese or English Voice Guide : Barrier-free operation, convenient for all users
Automatic Temperature Detection : Continuously monitors the device's status for stable operation
Stun / Kill Function : Remote control for enhanced device security
Single Audio Pulse Frequency : Simplifies modulation process for clearer signals
Multiple Back Light Colors Selectable : Customize backlight color to your preference
Scan Channel Adding / Deleting : Flexibly adjust your scanning list for personalized settings
Grouping Channel Scanning : Efficient channel management for quick location
Multiple Cooling Fan Settings : Keeps the device in optimal working condition
Superheterodyne Receiver Type : High-performance receiver ensures stability and clarity in communications

TECHNICAL SPECIFICATION

Intergration
Frequency Range	Suitable For Different Countries or Areas TX , FM 26-29.995MHz / 50-53.995MHz 136-174.995MHz / 400-479.995MHz RX , FM 26-29.995MHz / 50-54.995MHz / 65-108MHz 108-180.995MHz / 320-349.995MHz 400-479.995MHz / 700-987.995MHz RX , AM 108MHz-136MHz
Step	5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
Channel Number	999
Work Mode	F2D / F3E
Operating Temperature	-20℃～+60℃
Voltage	13.8VDC±15%
Antenna Impedance	50 Ω
Weight	1438 G
Size	140 x 44 x 207 MM

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	Transceiver≤3w , Hand Microphone≤1w
Sensitivity	UHF/VHF：0.25µV（12dB SINAD）

Transmitter
	Wide	Narrow
Adjacent Channel Power	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Signal to Noise Ratio	≥40dB	≥36dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Output Power	VHF( 5/10/25/50 W ) , UHF( 5/10/25/40 W )

STANDARD ACCESSORY

Send Accessory Inquiry

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003		SAO-001		SAO-002		MBO-001

Hand Microphone		Inclined Switchboard Panel		Flat Switchboard Panel		Mobile Mounting Bracket

RBO-001		PWO-002		SCO-002		SSO-001

Remote Front Panel Bracket		Power Cord		Extension Cable		Screw Sets

FUO-001

Fuse , 32V-15A

OPTIONAL ACCESSORY

SPO-002		PCO-003		ANO-035		ANO-016

Switching Power , 30A		USB Programming Cable		Antenna		Strong Magnetic Mount
