Professional Two Way Radio Manufacturer
...

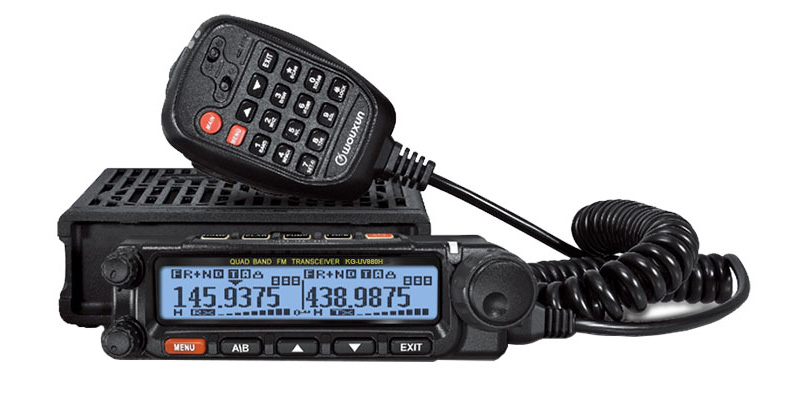

Cross Band Repeater , Shortcut Key Front Panel , Car Mobile Radio KG-UV980H

.

kg-uv980h

Buy Radio Now
RADIO  FUNCTION
  • Dual Frequency Display, Dual Independant Operation System
  • Seven Bands For Receiving , Three Bands For Transmitting
  • Twin Band / Same Band Simultaneous Reception
  • Front Panel And Radio Body Flexible For Separation
  • QT / DOT Encoding And Decoding
  • QT / DOT Scanning
  • Non-Standard CTCSS / DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Dual Track And Multi-Way Loudspeakers
  • Hand Microphone DTMF With Loudspeakers
  • Caller ID Display
  • DTMF Encoding And Decoding
  • Multiple Scanning Ways
  • Superheterodyne Receiver Type
  • Group Calls, All Calls And Selective Calls
  • 8 Groups of Scrambler
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Chinese or English Voice Guide
  • Automatic Temperature Detection
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Multiple Setting For Cooling Fan

TECHNICAL  SPECIFICATION
General
   Frequency Range

   Suitable For Different Countries or Areas
   TX , FM
   66-88 / 136-174.995 / 400-479.995 MHz
   RX , FM
   66-88 / 108-180.995 MHz
   320-349.995 / 400-479.995 MHz
   700-987.995 MHz
   RX , AM
   108-136 MHz
   Step 5KHz / 6.25KHz / 10KHz / 12.5KHz
25KHz / 50KHz / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20 ℃ ～ +60 ℃
   Voltage 13.8 VDC ± 15%
   Antenna Impedance 50 Ω
   Weight 1438 G
   Dimension 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power Transceiver ≤ 3W , Hand Microphone ≤ 1W
   Sensitivity UHF / VHF ：0.25µV （12dB SINAD ）

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Output Power VHF = 5 / 10 / 25 / 50 W , UHF = 5 / 10 / 25 / 40 W


STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003

SAO-001

SAO-002

MBO-001
microphone MMO-003,Hand-Microphone

switchboard-panel SAO-001,Inclined-Switchboard-Panel

switchboard-panel SAO-002,Flat-Switchboard-Panel

bracket MBO-001,Mounting-Bracket
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001

PWO-002

SCO-002

SSO-001
panel-bracket RBO-001,Front-Panel-Bracket

cord PWO-002,Power-Cord

cable SCO-002,Extension-Cable

screw SSO-001,Screw-Set
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Set

FUO-001



fuse FUO-001,Fuse



Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-035   ANO-016
power SPO-002,Switching-Power

cable PCO-003,USB-Cable

antenna ANO-035,Antenna

mount ANO-016,Magnetic-Mount
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
