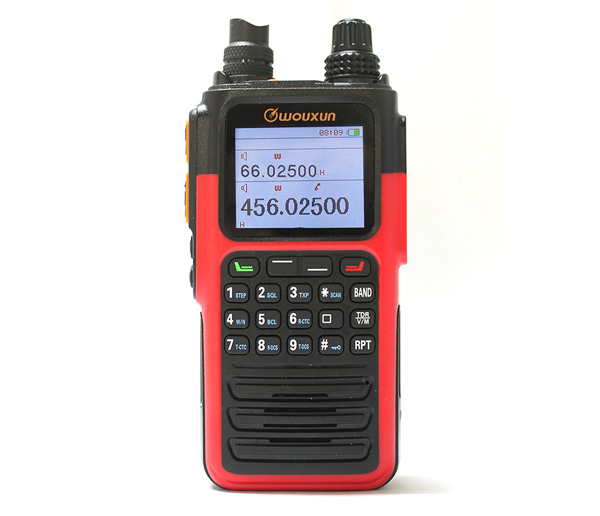

Three Bands Two Way Radio KG-Q336

kg-q336
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Step
  • Squelch
  • TX POWER
  • Bandwidth
  • Busy Channel Lockout
  • RX CTCSS
  • TX CTCSS
  • RX DCS
  • TX DCS
  • Work Mode
  • Offset
  • Shift
  • Channel Name Edit
  • Channel Adding
  • Channel Delete
  • Mute Mode
  • Scan Tone
  • Scan Adding
  • Scan Group
  • Scan Mode
  • Call Code
  • Scrambler
  • Compander
  • AM Mode SW
  • Battery Save Mode
  • Roger
  • Transmit Timeout Timer
  • Beep
  • Transmit Timeout Alert
  • PF1 Options
  • PF2- Short Press Options
  • PF2- Long Press Options
  • PF3- Short Press Options
  • PF3- Long Press Options
  • Backlight
  • Timer
  • StartUp Message
  • ANI CODE Edit
  • Side Tone
  • Auto Lockout
  • Priority Channel
  • Priority Channel Switch
  • Repeater Switch
  • Repeater Speaker
  • Repeater PTT
  • Single Tone Impulse Frequency
  • PTT ID Transmit Delay
  • PTT ID Transmit Modes
  • Ring Time
  • Repeater Tone
  • Scanning Tone Save Modes
  • Mute Mode in Sub Area
  • Reset Scanning Tone Save Modes
  • Backlight in Activate mode
  • Backlight in Standby mode
  • FM Radio mode
  • Theme
  • Time
  • Time Zone
  • Language
  • Scan Mode
  • Scan Tones SW
  • Top Key Options
  • VOX
  • Voice Guide
  • Type-C USB Charge Directly

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 66-88 & 136-174 & 400-480 MHz
   Frequency Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF / VHF : -119.0dBm SINAD 13dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , M:2W , L:1W
VHF H:5W , M:2W , L:1W


STANDARD  ACCESSORY
BLO-032   CHA-035A   CHA-035B   OTH-005
battery ...

charger ...

adaptor ...

hand-strap ...
Li-ion Battery Pack   Desktop Charger   Power Supply Adaptor   Hand Strap

ANO-056   ANO-057   OTH-001
antenna ...

antenna ...

belt-clip ...

Short Antenna   Long Antenna   Belt Clip
