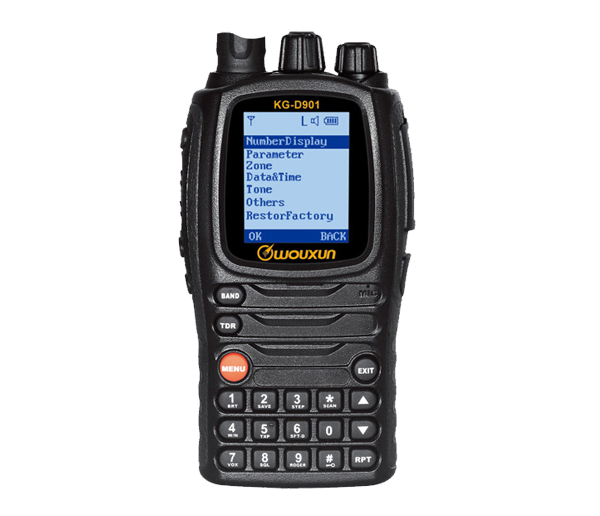

Call Recording , Digital And Analogue Two Way Radio KG-D901

kg-d901
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  CATALOG

RADIO  FUNCTIONS
  • English Voice Guide
  • Power Save
  • Transmit Overtime Forbidden
  • Inner Microphone Gain
  • Low Voltage Voice Prompt
  • SOS Alarm
  • ANI ID
  • Scan Group Setting
  • Scan Channel Selection
  • Digital Encryption
  • LED Flashlight
  • One Key Switch Digital / Analogue Mode
  • One Key Switch High / Low Power
  • Multi-Function Program For Sidekeys
  • PTT ID
  • VOX Function
  • Contact Edit
  • Remote Control , Remote Monitor
  • MSG Send And Receive
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
General
   Frequency Range 400-470 MHz
   Channel Spacing Digital : 12.5KHz
   Channel Number 1000
   Working Temperature -20℃～+50℃
   Storage Temperature -40℃～+80℃
   Working Voltage 7.4 VDC
   Working Currency < 1300mA
   Weight 261 G
   Dimension 65 x 33 x 124 (MM)
Receiver
   Frequency Stability ±2.5ppm
   Inter Modulation 65dB
   Co-Channel Rejection -8dB @ 12.5KHz
   Spurious Inhibition -57dBm @ <1GHz , -47dBm @ >1GHz
   Block 84dB
   Adjacent Channel Selectivity 60dB @ 12.5KHz
   Spurious Response ≥70dB
   Regulated Audio Power 1W
   Digital Sensitivity 0.3µV / -117.4dBm ( BER 5% )
0.7µV / -110dBm ( BER 1% )

Transmitter
   Transmission Power ≤5W
   FM Noise 40dB @ 12.5KHz
   Transmission Spurious -36dBm @ <1GHz , -30dBm @ >1GHz
   Adjacent Power -60dB @ 12.5KHz
   Bandwidth Limit 2.5KH z@ 12.5KHz
   Spare Time Slot Power -57dBm
   Modulation Characteristics +1dB ~ -3dB
   Digital Transmission
   Bit Error Rate		 ≤3%
   Output Power ≤5W
   4FSK Digital
   Modulation Method		 12.5KHz (data only) : 7K60FXD
12.5KHz (data+voice) : 7K60FXE


STANDARD  ACCESSORY
BLO-010

ANO-014

OTH-005

OTH-001
battery BLO-010,Battery

antenna ANO-014,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2000mAh   Antenna   Hand Strap   Belt Clip

CHA-011

CHA-011


charger CHA-011,Desktop-Charger

adaptor CHA-011,Power-Adaptor


Desktop Charger   Power Supply Adaptor
