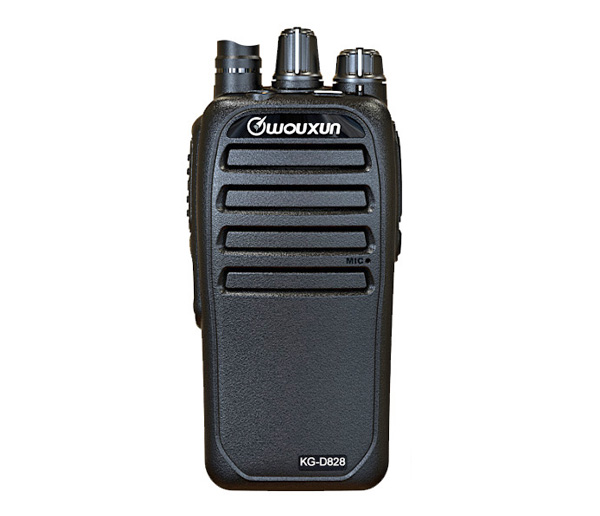

ARTS Function , Firmware Upgrade , Digital And Analogue Radio KG-D828

kg-d828
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  CATALOG

RADIO  FUNCTIONS
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-Out Alert
  • DTMF Encoding and Decoding
  • Firmware Upgrade
  • CTCSS Encoding And Decoding , Support Non-Standard
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS
  • Detection
  • Waterproof IP67
  • Call Alert
  • Flashlight
  • FM Radio

TECHNICAL  SPECIFICATION
General
   Frequency Range 136-174 / 400-520 MHz
   Channel Number 3072
   Operating Temperature -20℃～+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4 VDC
   Weight 300 G
   Dimension 64 x 41 x 130 (MM)
Receiver
   Analog Receive Sensitivity 0.25µV @ 12dB SINAD
   Digital Receive Sensitivity 0.25µV ( BER:5% )
   Adjacent Channel Selectivity ≤60dB @ 12.5KHz
   Audio Response +1dB ~ -3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data+Voice) : 7K60EXE
   Adjancent Channel Power ≤-60dB
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB ~ -3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz @ 12.5KHz
   Output Power UHF ( H : 4W , L : 1W) , VHF ( H : 5W , L : 1W)


STANDARD  ACCESSORY
BLO-016

ANO-033

OTH-005

OTH-001
battery BLO-016,Battery

antenna ANO-033,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-012

CHA-012


charger CHA-012,Desktop-Charger

adaptor CHA-012,Power-Adaptor


Desktop Charger   Power Supply Adaptor
