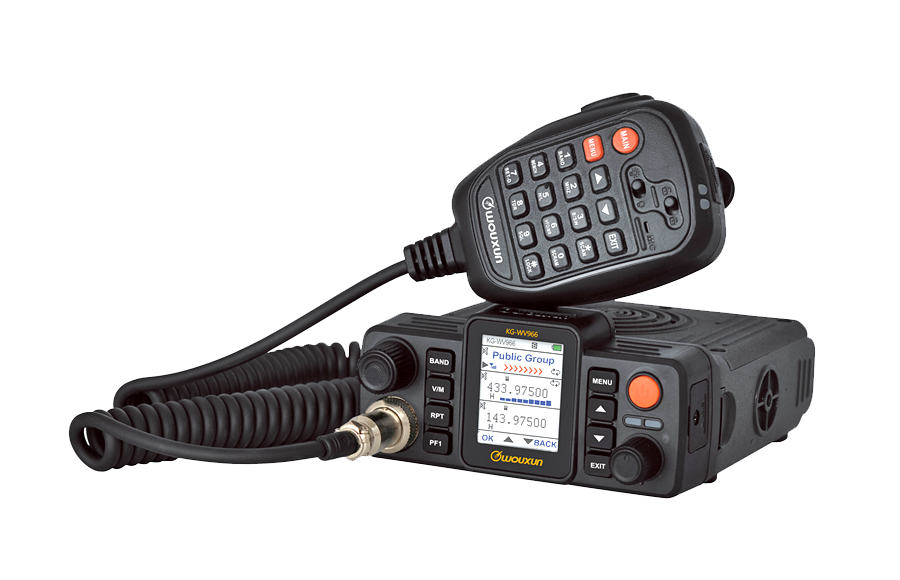

4G LTE Public Network And UV Dual Bands , Car Mobile Radio KG-WV966

.

kg-wv966

Buy Radio Now

KEY  FUNCTIONS
  • Compatible With 4G / 3G / 2G Public Network
  • Network to Analogue , Analogue to Network , Analogue to Analogue
  • Duplex Work at A / B / C Areas , One Area TX , Another Area RX
  • All Calls , Group Calls And Selective Calls
  • QT / DQT Scan
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • VOX And SOS Function
  • Support RealPTT Public Network Platform
  • Incoming Message Display Caller ID
  • DTMF Encoding And Decoding
  • Priority Scan Function
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection ( 12.5 / 25.0 KHz )
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Scramlber , Compander

TECHNICAL  SPECIFICATION
General
   Audio Power ≤500 mW
   Operating Temperature -20 ℃~+40 ℃
   Voltage 13.8 VDC
   Dimension 118 x 120 x 47 (MM)


Public Network
   Work Frequency Compatible With 4G / 3G / 2G Network
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm


Analogue
  Frequency Range    Suitable For Different Countries or Areas
   136-174 & 400-470MHz (RX/TX)
   136-174 & 400-480MHz (RX/TX)
   144-148 & 430-440MHz (RX/TX)
    76-108MHz (FM , RX , Setp 100K)
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50 Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power 25W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)

STANDARD  ACCESSORY
MMO-006   MBO-002   PWO-002   SSO-002
battery MMO-006,Hand-Microphone

bracket ...

power-cord ...

screw ...
Hand Microphone   Mobile Mounting Bracket   Power Cord   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A
