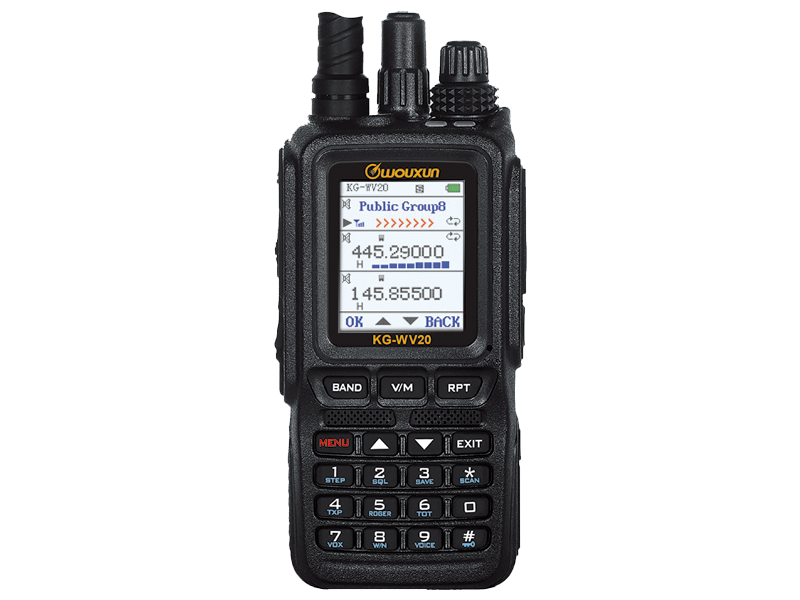

4G LTE Network Radio KG-WV20

.

kg-wv20

Buy Radio Now
RADIO  FUNCTION
  • Network to Analogue , Analogue to Network , Analogue to Analogue
  • Duplex Work at A / B / C Areas , One Area TX , Another Area RX
  • Dual Receive , Simultaneous Reception Among A / B / C Areas
  • Same Band or Cross Band Available
  • Large Colorful Screen
  • Three Bands Display on The Large Screen Independently
  • Frequency Offset And Direction Programmable in Repeater Mode
    UHF / VHF or VHF / UHF Cross-Band Repeater
  • QT / DQT Encoding and Decoding
  • QT / DQT Scan
  • Bright Flashlight Illumination
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • Support RealPTT Public Network Platform
  • VOX and SOS Function
  • Multi Definition For Sidekeys
  • Incoming Message Display Caller ID
  • DTMF Encoding And Decoding
  • All Calls , Group Calls And Selective Calls
  • Priority Scan Function
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Scramlber , Compander
  • Setting For Backlight

TECHNICAL  SPECIFICATION
General & Public Network
   Frequency Range Compatible With 4G / 3G / 2G Network
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm
   Operating Voltage 3.7 VDC
   Operating Temperature  -20℃ ~ +40℃
   Weight 290 G
   Dimension 48 x 28 x 130 MM
   System Linux

Analogue
   Frequency Range    Suitable For Different Countries or Areas
   136-174 & 400-470MHz ( RX / TX )
   136-174 & 400-480MHz ( RX / TX )
   144-148 & 430-440MHz ( RX / TX )
    76-108MHz (FM , RX , Setp 100K)
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50 Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF = 2.5W , VHF = 3.0W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KH z)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Audio Power ≤500 mW
   Sensitivity UHF / VHF : 0.25uV ( 12dB SINAD )

STANDARD  ACCESSORY
BLO-014

ANO-011

OTH-005

OTH-002
battery BLO-014,Battery

antenna ANO-011,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-002,Belt-Clip
Li-ion Battery Pack , 6000mAh   Antenna   Hand Strap   Belt Clip

CHA-014

CHA-014


charger CHA-014,Desktop-Charger

charger CHA-014,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor
