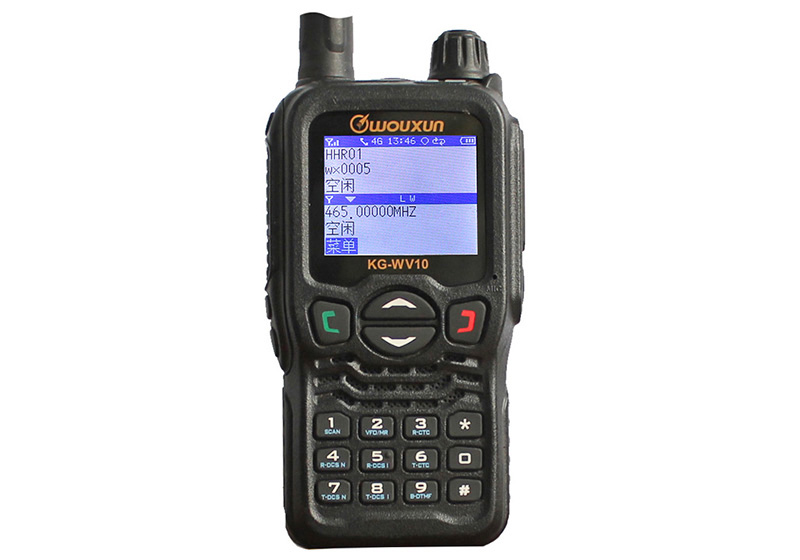

Public Network Two Way Radio KG-WV10

.

kg-wv10

Buy Radio Now
RADIO  FUNCTION
  • Large Color Screen
  • Public Network Push to Talk And Analogue Radio
  • RX On The Same / Different Bands of A&B Areas Simultaneously
  • Duplex Work Mode , One Band TX , Another Bands RX
  • DTMF Encode And Decode
  • QT / DQT Encoding And Decoding
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100 Hz
  • Multi Definition For Sidekeys
  • Selective Calls , Group Calls , All Calls
  • Lamp Function
  • Support RealPTT Public Network Platform

TECHNICAL  SPECIFICATION
General & Public Network
   Frequency Range CDMA2000 , 800MHz
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm
   Operating Voltage 7.4 VDC
   Operating Temperature  -20℃ ~ +40℃
   Weight 260 G
   Dimension 62 x 34 x 123 MM
   System Linux

Analogue
   Frequency Range    Suitable For Different Countries or Areas
   400-470MHz ( RX / TX )
   Setp 5 / 6.25 / 12.5 / 25 / 50 KHz
   Memory Channels 16
   Mode F2D / F3E
   Antenna Impedance 50 Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF : 1 / 4W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KH z)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Audio Power ≤500 mW
   Sensitivity UHF : 0.25uV ( 12dB SINAD )

STANDARD  ACCESSORY
BLO-014

ANO-011

OTH-005

OTH-001
battery BLO-014,Battery

antenna ANO-011,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 6000mAh   Antenna   Hand Strap   Belt Clip

CHA-015

CHA-015


charger CHA-015,Desktop-Charger

charger CHA-015,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor
