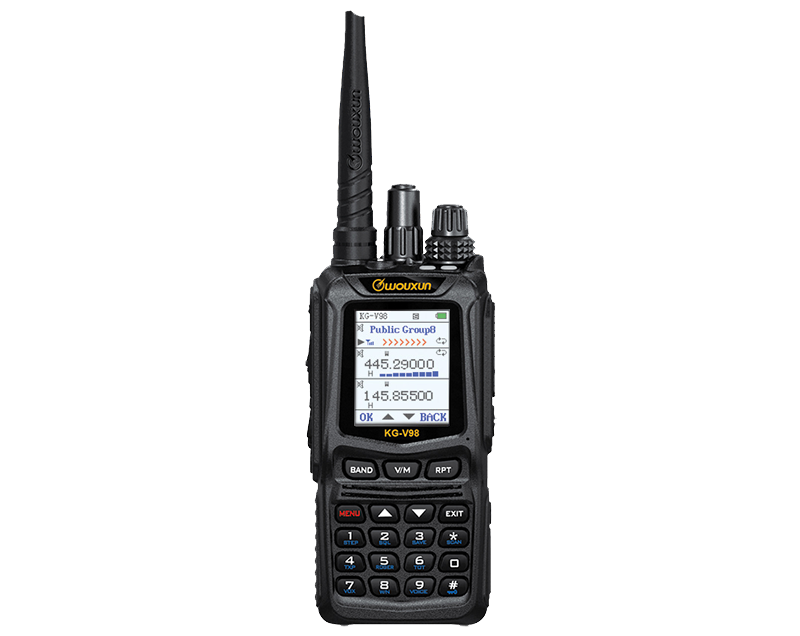

Cross Band Repeater , 4G LTE Network And Analogue , Simcard Radio KG-V98

.

kg-v98
Buy Radio Now

Super Long Talk Range
Thanks to PoC ( Push-to-Talk Over Cellular ) And Cross Band Repeater Technology ,
The KG-V98 Can Support Supper Long Talk Range More Than 100 KM.

Three Modes
There Are Three Mode in KG-V98 , VHF & UHF & PoC ( Push-to-Talk Over Cellular )

Cross Band Repeater
KG-V98 Repeater Support VHF to UHF , VHF to POC , UHF to POC

RADIO  FUNCTION
  • Large Colorful Screen
  • Compatible With 4G / 3G / 2G Public Network
  • Network to Analogue , Analogue to Network , Analogue to Analogue
  • Duplex Work at A / B / C Areas , One Area TX , Another Area RX
  • Dual Receive , Simultaneous Reception Among A / B / C Areas
    Same Band or Cross Band Available
  • Tri-Bands Display on The Large Screen Independently
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • Frequency Offset And Direction Programmable in Repeater Mode
    UHF / VHF or VHF / UHF Cross-Band Repeater
  • Bright Flashlight Illumination
  • QT / DQT Encoding And Decoding
  • QT / DQT Scan
  • Setting For Backlight
  • Support RealPTT Public Network Platform
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • VOX And SOS Function
  • Multi Definition For Sidekeys
  • Incoming Message Display Caller ID
  • DTMF Encoding And Decoding
  • All Calls , Group Calls And Selective Calls
  • Priority Scan Function
  • Remote Alarm
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Compander

TECHNICAL  SPECIFICATION
General & Public Network
   Frequency Range Suitable For Different Countries or Areas
Compatible With 4G / 3G / 2G Network
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm
   Operating Voltage 7.4 VDC
   Operating Temperature  -20℃ ～ +40℃
   Weight 298 G
   Dimension 28 x 50 x 132 MM
   System Linux

Analogue
   Frequency Range    Suitable For Different Countries or Areas
   136-174 & 400-470MHz ( RX / TX )
   136-174 & 400-480MHz ( RX / TX )
   144-148 & 430-440MHz ( RX / TX )
   76-108MHz (FM , RX , Setp 100K)
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50 Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF = 4W , VHF = 5W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KH z)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Audio Power ≤500 mW
   Sensitivity UHF / VHF : 0.25uV ( 12dB SINAD )

STANDARD  ACCESSORY
BLO-015

ANO-011

OTH-005

OTH-002
battery BLO-015,Battery

antenna ANO-011,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-002,Belt-Clip
Li-ion Battery Pack , 2500mAh   Antenna   Hand Strap   Belt Clip

CHA-014

CHA-014


charger CHA-014,Desktop-Charger

charger CHA-014,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor

OPTIONAL  ACCESSORY
CHA-032   PCO-009   SMO-002   HEO-002
charger CHA-032,Six-Way Charger

cable PCO-009,USB-Programming-Cable

speaker SMO-002,Speaker

headset HEO-002,Air-Conduit-Earphone
Six-Way Charger   USB Programming Cable   Speaker   Air Conduit Earphone
