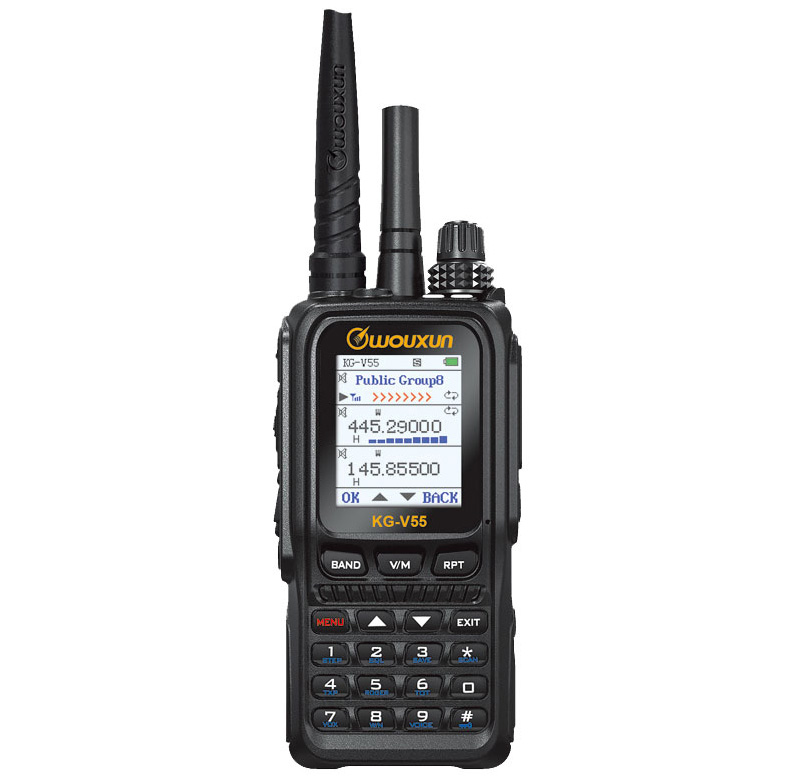

UV Dual Band , 4G LTE Public Network Radio KG-V55

.

kg-v55

Buy Radio Now
RADIO  FUNCTION
  • Large Color Screen
  • Compatible With 4G / 3G / 2G Public Network
  • Twin Modes , Three Bands
  • Cross-Mode Repeat , Simcard Radio <-> Analogue Radio
    Analogue Radio <-> Analogue Radio
  • Simultaneous Reception Among Three Bands
  • Duplex Work Among Three Bands (One Band TX , Another Bands RX)
  • Offset , Shift Frequency in Analogue Mode
  • UHF / VHF, VHF / UHF Cross-Band Repeat
  • Support RealPTT Public Network Platform
  • VOX Function
  • Multi-Definition For Side Keys
  • DTMF Encode And Decode
  • Selective Calls , Group Calls , All Calls
  • SOS Emergency Alarm
  • Lamp , Backlight , Stopwatch
  • 200 Contacts , Caller ID
  • Compander , Scrambler
  • Talk-Around

TECHNICAL  SPECIFICATION
General & Public Network
   Frequency Range Compatible With 4G / 3G / 2G Network
   Max TX Power 23~25dBm @ AII Up Bits
   RX Sensitivity -106 dBm
   Operating Voltage 3.7 VDC
   Operating Temperature  -20℃ ~ +40℃
   Weight 300 G
   Dimension 136 x 59 x 34 MM
   System Linux

Analogue
   Frequency Range    Suitable For Different Countries or Areas
   136-174 & 400-470MHz ( RX / TX )
   136-174 & 400-480MHz ( RX / TX )
   144-148 & 430-440MHz ( RX / TX )
    76-108MHz (FM , RX , Setp 100K)
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50 Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KHz )
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF = 2.5W , VHF = 3.0W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1 ~ -3dB ( 0.3~3KHz ) +1 ~ -3dB ( 0.3~3KH z)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Audio Power ≤500 mW
   Sensitivity UHF / VHF : 0.25uV ( 12dB SINAD )

STANDARD  ACCESSORY
BLO-014

ANO-011

OTH-005

OTH-001
battery BLO-014,Battery

antenna ANO-011,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 6000mAh   Antenna   Hand Strap   Belt Clip

CHA-014

CHA-014


charger CHA-014,Desktop-Charger

charger CHA-014,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor

OPTIONAL  ACCESSORY
CHA-032   CHA-031   SMO-002   HEO-002
charger CHA-032,Six-Way Charger

cable CHA-031,USB-Charging-Cable

speaker SMO-002,Speaker

headset HEO-002,Air-Conduit-Earphone
Six-Way Charger   USB Charging Cable   Speaker   Air Conduit Earphone


Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
