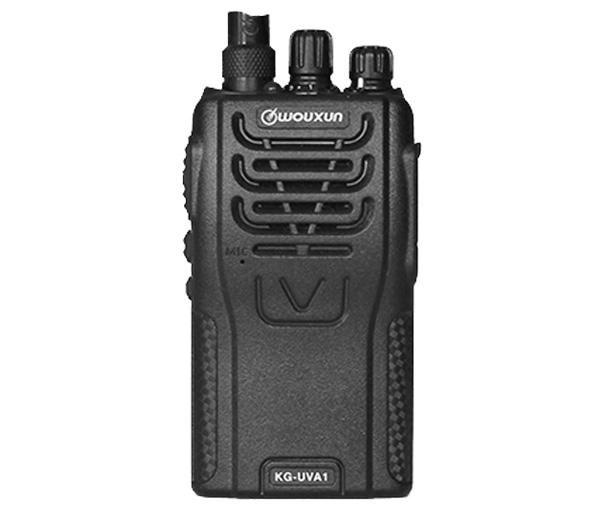

Two Way Radio KG-UVA1

kg-uva1
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • DTMF Encoding And Decoding
  • Working Mode : U-V , V-U , V-V , U-U Can be Set Freely
  • 1750Hz Burst Tone
  • Priority Scan , Add Scanning Channel
  • High / Low Power Selection
  • Busy Channel Lockout
  • 50 Groups CTCSS , 105 Groups DCS
  • VOX Transmission
  • SOS Function
  • FM Radio
  • English Voice Guide
  • Wide / Narrow Bandwidth Selection ( 12.5 / 25.0 KHz )
  • Transmit Overtime Voice Prompt
  • Bright Flashlight Illumination
  • Superheterodyne Receiver Type
  • Multi Scan Mode ( TO / CO / SE )
  • Begin / End Transmitting Beep Prompt
  • Program By Computer
  • Wire Clone Function
  • Low Voltage Voice Prompt

TECHNICAL  SPECIFICATION
General
  Frequency Range   Suitable For Different Countries or Areas
  136-174 & 216-280MHz (RX / TX)
  136-174 & 400-480MHz (RX / TX)
  66-88 & 136-174MHz (RX / TX)
  66-88 & 400-480MHz (RX / TX)
  FM = 76-108MHz (RX)
  Memory Channels 16
  Frequency Stability ± 2.5 PPM
  Operating Voltage 7.4 VDC
  Operating Temperature  -30℃ ～ +60℃
  Waterproof IP55
  Antenna Impedance 50 Ω
  Weight 228 G
  Dimension 61 x 121 x 38 MM
Transmitter
  Frequency Stability ± 2.5 PPM
  RF Carrier Power UHF = 1 / 4W , VHF = 1 / 5W
  Effective Radiation Power within pre-determined value ±7.5dB
  Max. Frequency Deviation Channel Space : 25KHz  ± 5KHz
Channel Space : 12.5KHz ± 2.5KHz
  Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
  Adjacent Channel Power Channel Space : 25KHz  ≥70 dB
Channel Space : 12.5KHz  ≥60 dB
  Spurious Radiation ≤-30dBm
  Inter Modulation Attenuation ≥40dB
  Modulation Distortion ≤10%
  Residual FM ≤-35dB
  Residual AM ≤3%

Receiver
  Sensitivity 0.16µV (12dB SINAD）
  Squelch Rejection Sensitivity ≤0.8µV
  Squelch Sensitivity ≤0.2µV
  Audio Output Power 500mW
  Audio Distortion ≤5%
  Audio Response (300 - 3000Hz)  +1 to -3dB
  Co-Channel Rejection ≥-8.0dB
  Performance of Amplitude Limiter ≤3
  Adjacent Channel Selection Channel Space : 25KHz  ≥70 dB
Channel Space : 12.5KHz  ≥60 dB
  Inter-Modulation ≥65 dB
  Resistance ≥84 dB
  Spurious Radiation 9KHz-1GHz ≤ -57dBm
1GHz-4GH z≤ -47dBm


STANDARD  ACCESSORY
BLO-004

ANO-002

OTH-005

OTH-003
battery BLO-004,Battery

antenna ANO-002,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-003



charger CHA-003,Desktop-Charger



Desktop Charger
