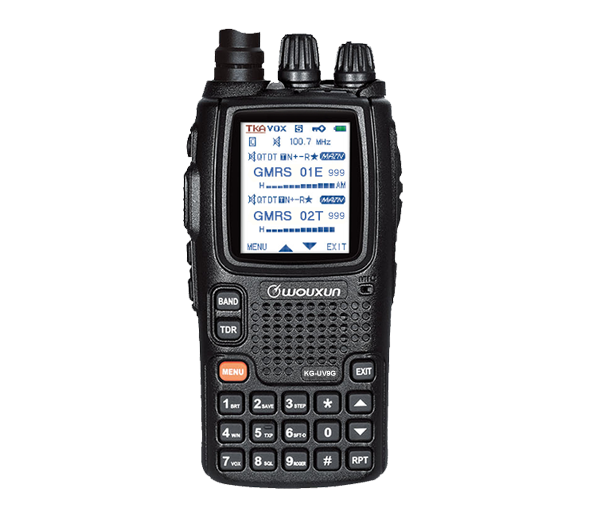

GMRS Two Way Radio KG-UV9G-PRO

kg-uv9gx
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Part 95E / 15B FCC Certified
  • AM Air Band
  • Broadcast FM Radio
  • Dual Simultaneous Scanning
  • Wide / Narrow Bandwidth
  • Repeater Reverse
  • Talk-Around Functions
  • 50 CTCSS PL Tones And 105 DCS Privacy Codes
  • CTCSS / DCS Scanning
  • 3 Programable Function Side-Keys
  • Usable Default GMRS Channels & Repeaters
  • 7 Bands Receive
  • Bright Flashlight
  • Time-Out-Timer
  • 8 Character Alpha Channel Names
  • English Voice Announce
  • Superheterodyne
  • Waterproof IP55
  • Dual PTT Key

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range     30 GMRS Channels
    76-180 & 230-250 MHz , RX
    350-512 & 700-960 MHz , RX
   Frequency Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(13dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power 5.5W / 5W / 0.5W


STANDARD  ACCESSORY
BLO-012   CHA-011   CHA-011   ANO-014
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 3200mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
