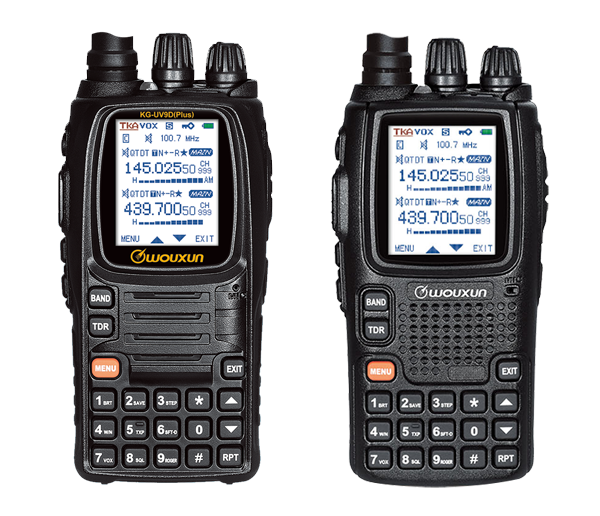

Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV9D(Plus)
KG-UV9D-Plus is a multi-function amateur two way radio. air bands receive and cross band repeat is the highlight feature. thanks to the advanced audio processing and anti-interference technologies, the KG-UV9D-Plus delivers clear communication even in noisy environments.

kg-uv9d(plus)
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

EXCELLENT  FEATURES

Seven Bands Receive
Thanks to the advanced frequency modulation technologies, WOUXUN develop a first
radio can support seven bands reception, which are 76-108MHz(FM) ,
108-136MHz(air ground) ,136-180MHz(FM) ,230-250MHz(FM) ,350-400MHz(FM) ,
400-512MHz(FM) ,700-985MHz(FM)

Cross Band Repeater
KG-UV9D Plus is a advanced two way radio which can repeat VHF to UHF or UHF
to VHF. It can be used as a small movable repeater, very helpful for extend the
talk range.KG-UV9D Plus repeater function are widely used in building,
restaurant, taxi, factory ect.

Anti-Interference Technologies
The advanced Anti-interference technologies are used in KG-UV9D Plus. The
superheterodyne receiver makes KG-UV9D Plus performance great noise
reduction. However, the High sensitivity also help KG-UV9D Plus receive
the week signal.

Mplitude-Frequency PTT Settings
There are two PTT keys designed in KG-UV9D Plus. One control Main Frequency,
another control sub frequency. This advanced design make user more convent
communicate in different area.

Memory Channels 999
There are 999 channels in KG-UV9D Plus. The large channel memory makes user
can store more channel list. It is a advanced channel storage in analogue
two way radio.

Duplex Work on A&B Areas
KG-UV9D Plus support duplex work. When you transmit in A band, it can receive in
B band at same time. Very helpful in duplex communication.


MAIN  FUNCTIONS
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Dual Receiving
  • TX on One Area while RX on The Other Area Simultaneously
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
  • Channel Groups Scanning
  • Memory Channels 999
  • QT / DQT Encoding / Decoding, QT / DQT Scan
  • Non-Standard CTCSS Can Be Set Arbitrarily
  • VOX and SOS Function
  • Multi Definition For Sidekeys
  • Reverse Frequency
  • Mplitude-Frequency PTT Settings
  • Coming Message Display Caller ID Display
  • DTMF Encoding / Decoding
  • All Calls,Group Calls And Selective Calls
  • PriorRemote Alarmity Scan Function
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • English And Chinese Voice Guide
  • Chinese / English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

    TX: 136-174MHZ(FM) , 400-512MHZ(FM)
    RX: 76-108MHZ(FM) , 108-136MHZ(Air Ground)
              136-180MHZ(FM) , 230-250MHZ(FM)
              350-400MHZ(FM) ,  400-512MHZ(FM)
              700-985MHZ(FM)
   Frequency Step 2.5 / 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
   Weight 490 G
   Size 130 x 57 x 35 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W


STANDARD  ACCESSORY
BLO-010   CHA-011   CHA-011   OTH-001
battery

charger

power adapotr

belt clip
Li-ion Battery Pack , 2000mAh   Desktop Charger   Power Supply Adaptor   Belt Clip

OTH-005   ANO-014
hand strap

antenna

Hand Strap   Antenna

OPTIONAL  ACCESSORY
BLO-012   CHA-013   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-004
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-012   AAO-001   AAO-002
antenna

adaptor

adaptor

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
