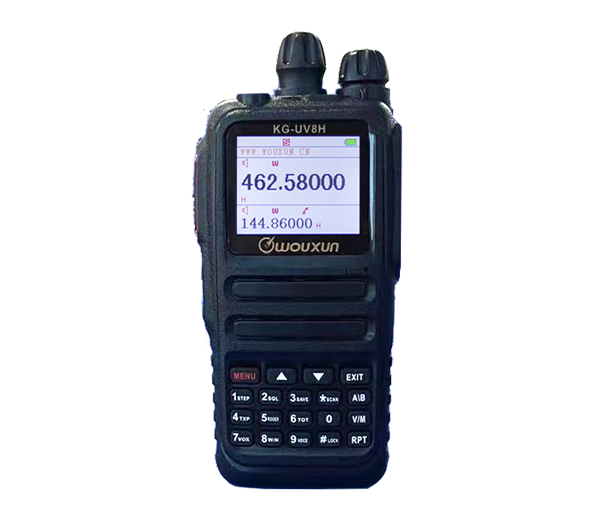

High Power Output , Color Screen , Two Way Radio KG-UV8H

kg-uv8h

Product Resource And Related Webpage Link

... Send Radio Order Message

... Share KG-UV8H  to Your Facebook

... Share KG-UV8H  to Your Twitter

... Download KG-UV8H User Manual

... Download KG-UV8H Software

... Download KG-UV8H Brochure




MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • Memory Channels 999
  • QT/DQT Encoding / Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Incoming Message Display Caller ID display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • Dual Display ,Two Independent Operation System
  • Large Color Screen
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Power on Message Editable
  • Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
  • Chinese and English Voice Guide
  • Chinese and English Screen Display
  • Bright Flashlight illumination
  • Reverse Frequency
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Encryption and Non-Standard CTCSS/DCS
  • Voice Compander

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable for Different Countries or Areas
   136-174MHz & 400-470MHz
   136-174MHz & 400-480MHz
   136-174MHz & 420-520MHz
   144-146MHz & 430-440MHz
   144-148MHz & 420-520MHz

   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W


STANDARD  ACCESSORY
BLO-011   CHA-028   CHA-028   ANO-039
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 3200mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
