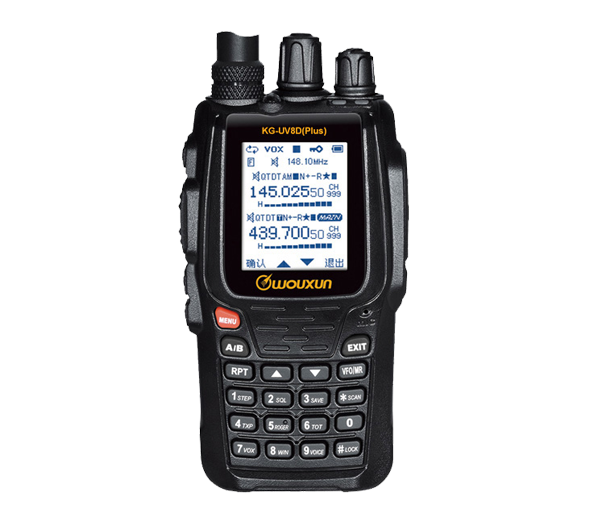

Dual Bands , Voice Encryption , Two Way Radio KG-UV8D(Plus)

kg-uv8d(plus)
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Voice Encryption
  • Non-Standard CTCSS / DCS
  • VOX And SOS Funcion
  • QT / DQT Scan
  • Multi Definition For Sidekeys
  • DTMF Encoding / Decoding
  • All Calls , Group Calls And Selective Calls
  • Large Color Screen
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Reverse Frequency
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Compander
  • Backlight Intensity Can Be Adjusted
  • Power on Message Editable
  • English And Chinese Voice Guide
  • English And Chinese Screen Display
  • Bright Flashlight illumination

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
   136-174MHz & 400-480MHz
   136-174MHz & 420-520MHz
   144-146MHz & 430-440MHz
   144-148MHz & 420-520MHz

   Step 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
   Weight 490 G
   Size 125 x 62 x 33 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W


STANDARD  ACCESSORY
BLO-008   ANO-011   OTH-005   OTH-003
battery ...

antenna ...

hand-strap ...

belt clip ...
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-029
charger ...

Desktop Charger
