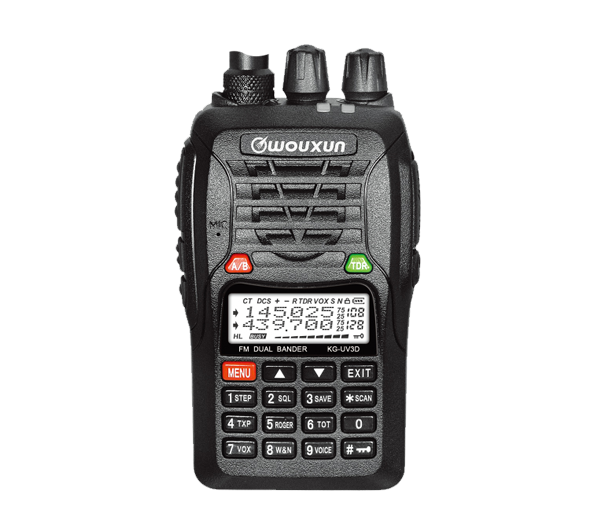

Dual Bands , Two Way Radio KG-UV3D

kg-uv3d

 Product Resource And Related Webpage Link
... Send Personal Order





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • 1750 Hz Burst Tone
  • DTMF Encoding And Decoding Function
  • Working Mode , VHF TX-UHF RX or UHF TX-VHF RX Can be Set Freely
  • CTCSS / DCS Scan
  • VOX and SOS Function
  • Bright Flashlight Illumination
  • Digital FM Radio
  • Bandwidth Selection
  • Priority Scan , Add Scanning Channel
  • High / Low Power Selection
  • 50 Groups CTCSS , 105 Groups CCTCSS
  • Waterproof IP55
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Transmitter
   Frequency Range Suitable For Different Countries or Areas
   Frequency Stability ±2.5PPM
   RF Carrier Power VHF:5W , UHF:4W
   Effective Radiation Power within pre-determined value ±7.5dB
   Audio Modulation +3dB(0.3-3KHz)
   Max Frequency Deviation 12.5KHz ±2.5KHz , 25KHz ±5KHz
   Adjacent Channel Power 12.5KHz ≥60dB , 25KHz ≥70dB
   Frequency Steup 5 , 6.25 , 10 , 12.5 , 25 , 50 , 100KHz
   Spurious Radiation ≤-30dB
   Inter Modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%
   Emission Designator F3E
Receiver
   Adjacent Channel Selectivity 12.5KHz ≥60dB , 25KHz ≥70dB
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Inter Modulation ≥65dB
   Co-channel Rejection ≥-8.0dB
   Performance of Amplitude Limiter ≤3
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz≤-57dBm ,1GHz-4GHz≤-47dBm
   Audio Response +1~-3dB(0.3~3KHz)
   Audio Distortion ≤5%
   Sensitivity 0.16µV SINAD 12dB
   Audio Power ≤500mW
   Waterproof IP55

STANDARD  ACCESSORY
BLO-004   CHA-003   ANO-002   OTH-003
battery BLO-004,Battery

charger ...

antenna ...

antenna ...
Li-ion Battery Pack , 1700mAh   Desktop Charger   Antenna   Belt Clip

OTH-005
hand strap ...

Hand Strap
