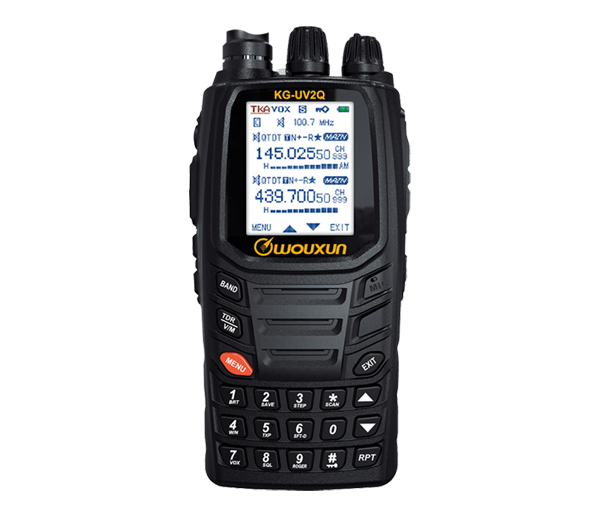

Cross Band Repeater , Two Way Radio KG-UV2Q

kg-uv2q
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • Large Color Screen
  • Cross Band Repeater
  • DTMF Encoding And Decoding
  • All Calls , Group Calls , Selective Calls
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100 Hz
  • Non-Standard CTCSS
  • VOX And SOS function
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Duplex Work on A&B Areas
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band , Scanning on Limiting Frequency
  • Channel Groups Scanning
  • QT / DQT Encoding / Decoding , QT / DQT Scan
  • Multi Definition For Sidekeys
  • Reverse Frequency
  • Mplitude Frequency PTT Settings
  • Stopwatch

TECHNICAL  SPECIFICATION
General
   Frequency Range    Suitable For Different Countries or Areas
   TX = 136-174 / 400-512 MHz
   RX = 76-108 / 108-136 MHz ( Air Ground )
            136-180 / 230-250 / 350-400 MHz
            400-512 / 700-985 MHz
   Frequency Step 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20 ℃ ~ +40 ℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB ( 0.3~3KHz ) +1~-3dB ( 0.3~3KHz )
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5 PPM
   Audio Distortion ≤ 5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB ( 0.3~3KHz ) +1~-3dB ( 0.3~3KHz )
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤ 5%
   Audio Power ≤ 500mW
   Sensitivity 108-136MHz(AM) -106.0dBm SINAD 13dB
136-180MHz -119.0dBm SINAD 13dB
230-250MHz -116.0dBm SINAD 13dB
350-400MHz -119.0dBm SINAD 13dB
400-512MHz -119.0dBm SINAD 13dB
700-986MHz -96.0dBm SINAD 12dB

STANDARD  ACCESSORY
BLO-012

ANO-014

OTH-005

OTH-001
battery BLO-012,Battery

antenna ANO-014,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 3200mAH   Antenna   Hand Strap   Belt Clip

CHA-011

CHA-011


charger CHA-011,Desktop-Charger

adaptor CHA-011,Power-Adaptor


Desktop Charger   Power Supply Adaptor
