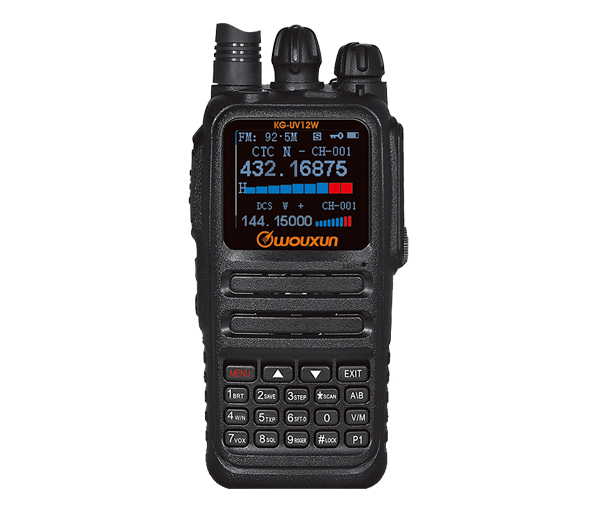

High Power Output , UV Dual Bands , Two Way Radio KG-UV12W

kg-uv12w
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Memory Channels 999
  • QT/DQT Encoding / Decoding , QT / DQT Scan
  • VOX and SOS Funcion
  • Multi Definition for Sidekeys
  • Incoming Message Display Caller ID display
  • DTMF Encoding and Decoding
  • All Calls , Group Calls And Selective Calls
  • Dual Display ,Two Independent Operation System
  • Large Color Screen
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Power on Message Editable
  • Wide / Narrow Bandwidth Selection (25KHZ / 12.5KHz)
  • Chinese and English Voice Guide
  • Chinese and English Screen Display
  • Bright Flashlight illumination
  • Reverse Frequency
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100Hz
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Encryption and Non-Standard CTCSS/DCS
  • Voice Compander

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable for Different Countries or Areas
   136-174MHz & 400-480MHz

   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W


STANDARD  ACCESSORY
BLO-009   CHA-028   CHA-028   ANO-039
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2600mAh   Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
