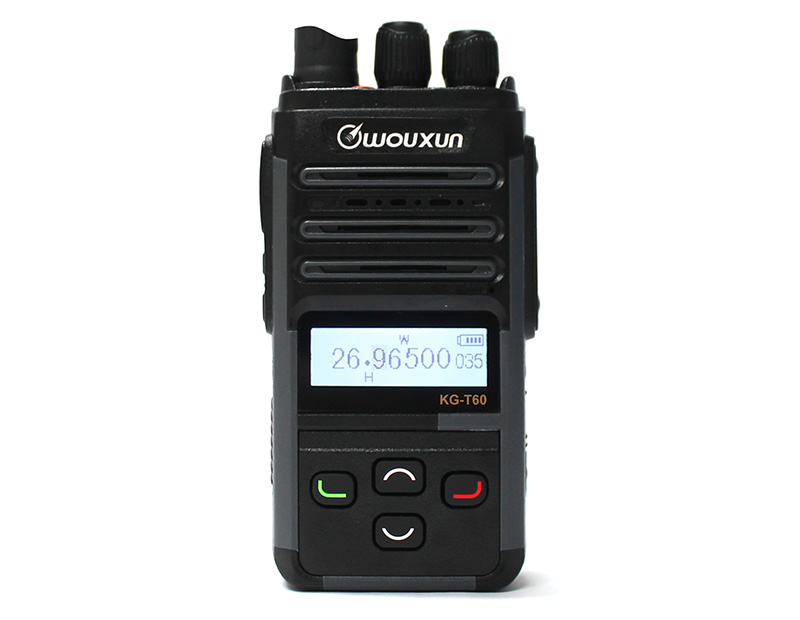

radio menu CB Portable Two Way Radio KG-T60



  CLICK HERE CLOSE LIST radio list

kg-t60

Send Order Message

MAIN  FUNCTIONS
  • Frequency Tuning Step 100Hz、1KHz 、10KHz、100KHz 、1MHz
  • Flexible Menu Function and PC Program Software
  • SQ , ASQ Function (FM and AM Mode Only)
  • RF PWR Adjustment
  • SCAN Function
  • Programmable RB Function
  • Offset Frequency Function
  • +10KHZ Function
  • EMG Channel Function
  • SWR Protect
  • Power Supply Voltage Protection
  • Key-Lock Function
  • Model Name Customized Function
  • CTCSS / DCS Code(Optional)
  • TOT Function
  • USB Type-C Built Into The Radio For Charging

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range Customerized by Different Areas or Countries
For CB Bands
26-30 MHz
   Memory Channels 256
   Frequency Stability ±2.5 PPM
   Operating Voltage 7.4 VDC
   Operating Temperature  -30℃~+60℃
   Waterproof IP 67
   Antenna Impedance 50Ω
   Operating Way Simplex of Co-channel or Dis-channel
Transmitter
   Frequency Stability ±2.5 PPM
   RF Carrier Power UHF: 4W , VHF: 5W
   Effective Radiation Power Power Changes Not Exceed
Preset Value ±7.5dB
   Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
   Audio Modulation +3dB (Pre-emphasis by 6dB Between 0.3-3KHz)
   Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Spurious Radiation ≤-30dBm
   Inter Modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%

Receiver
   Sensitivity (12dB SINAD) 0.16µV
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Audio Output Power 500mW
   Audio Distortion ≤5%
   Audio Response (300-3000Hz)  +1 to -3dB
   Co-channel Rejection ≥-8.0dB
   Performance of Amplitude Limiter ≤3
   Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Inter-modulation ≥65 dB
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm

STANDARD  ACCESSORY
BLO-021   ANO-053   OTH-005   OTH-001
battery ...

antenna ...

hand-strap ...

belt clip ...
Li-ion Battery Pack   Antenna   Hand Strap   Belt Clip

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
