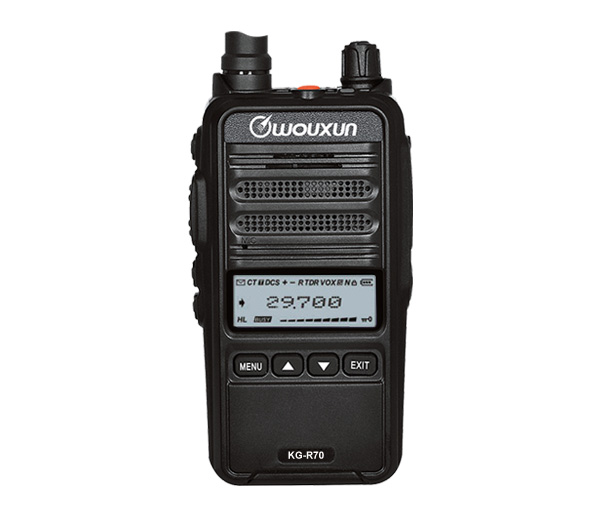

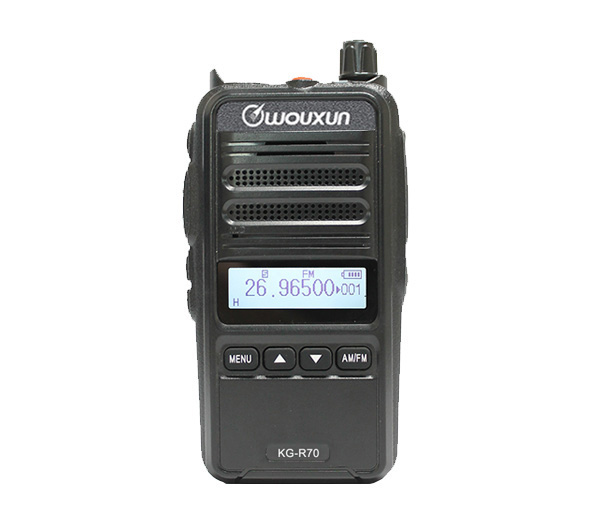

Handheld Two Way Radio KG-R70

kg-r70
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Begin and End Transmitting Beep Prompt
  • 105 Groups DCS , 50 Groups CTCSS
  • CTCSS Scan and DCS Scan
  • Voice Guide
  • Channel Name Edit and Display
  • Battery Capacity Prompt
  • Programmable by Computer
  • Bandwidth Selectable
  • Reverse Frequency Function
  • Multi Scan Mode (TO / CO / SE)
  • Displaying Mode : Frequency / Channel / Channel Name
  • TOT (Time-out Timer)
  • Busy Channel Lockout
  • Keypad Lock (Auto / Manual)

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 26 - 30 MHz , AM / FM
   Memory Channels 400
   Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz
   Frequency Stability ±2.5 PPM
   Operating Voltage 7.4 VDC
   Operating Temperature  -30℃~+60℃
   Waterproof IP 55
   Antenna Impedance 50Ω
   Operating Way Simplex of Co-channel or Dis-channel
Transmitter
   Frequency Stability ±2.5 PPM
   RF Carrier Power 4W
   Effective Radiation Power Power Changes Not Exceed
Preset Value ±7.5dB
   Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
   Audio Modulation +3dB (Pre-emphasis by 6dB Between 0.3-3KHz)
   Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Spurious Radiation ≤-30dBm
   Inter Modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%

Receiver
   Sensitivity (12dB SINAD) 0.16µV
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Audio Output Power 500mW
   Audio Distortion ≤5%
   Audio Response (300-3000Hz)  +1 to -3dB
   Co-channel Rejection ≥-8.0dB
   Performance of Amplitude Limiter ≤3
   Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Inter-modulation ≥65 dB
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm

STANDARD  ACCESSORY
BLO-008   ANO-040   OTH-005   OTH-003
battery ...

antenna ...

hand-strap ...

belt clip ...
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-029
charger ...

Desktop Charger
