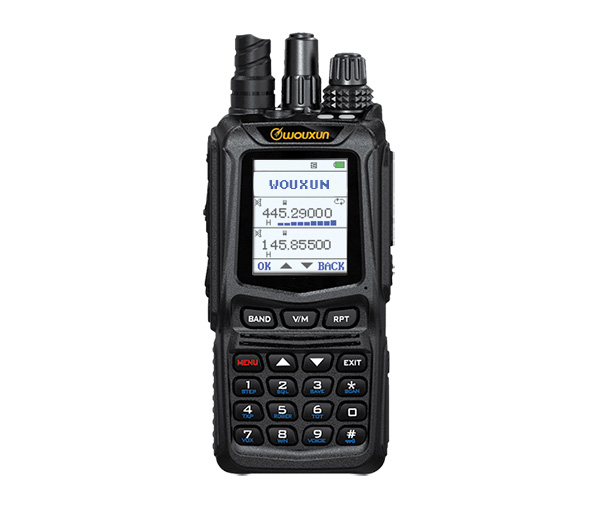

UV Dual Bands , Two Way Radio KG-M98

kg-m98
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Duplex Work Mode and Dual Receiving
  • Cross Band Repeater
  • Voice Encryption
  • Non-Standard CTCSS / DCS
  • VOX And SOS Funcion
  • QT / DQT Scan
  • Multi Definition For Sidekeys
  • DTMF Encoding / Decoding
  • All Calls , Group Calls And Selective Calls
  • Large Color Screen
  • Wide / Narrow Bandwidth Selection (12.5 / 25.0 KHz)
  • Reverse Frequency
  • Stopwatch
  • Remote Alarm
  • Priority Scan Function
  • Voice Compander
  • Backlight Intensity Can Be Adjusted
  • Power on Message Editable
  • English And Chinese Voice Guide
  • English And Chinese Screen Display
  • Bright Flashlight illumination

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
   136-174MHz & 400-480MHz
   136-174MHz & 420-520MHz
   144-146MHz & 430-440MHz
   144-148MHz & 420-520MHz

   Step 5.0 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W


STANDARD  ACCESSORY
BLO-015   ANO-011   OTH-005   OTH-002
battery BLO-015,Battery

antenna ...

hand-strap ...

belt-clip ...
Li-ion Battery Pack , 2500mAh   Antenna   Hand Strap   Belt Clip

CHA-014   CHA-014
charger ...

adaptor ...

Desktop Charger   Power Supply Adaptor

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
