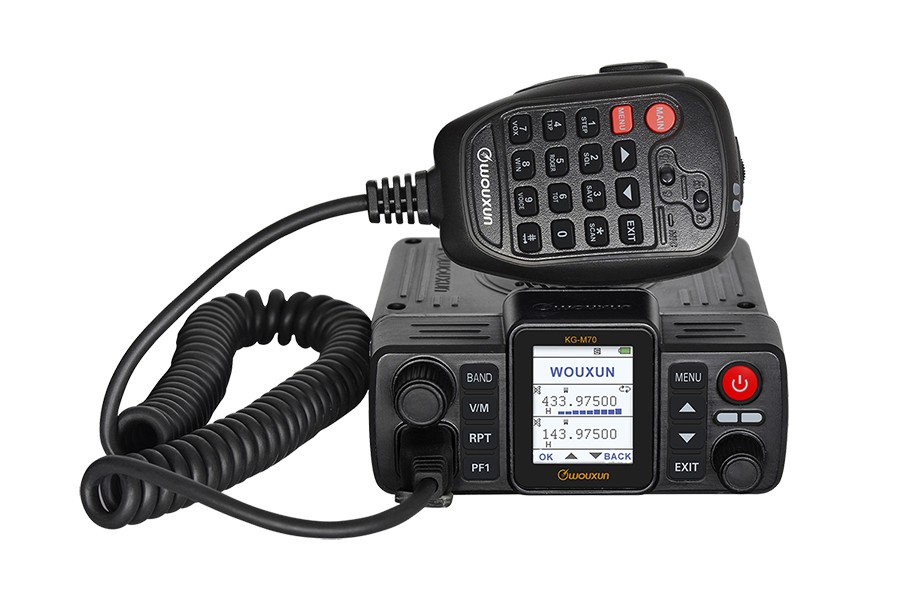

radio menu UV Dual Bands , Car Mobile Radio KG-M70



  CLICK HERE CLOSE LIST radio list

kg-m70
Send Repeater Order Message


MAIN  FUNCTIONS
  • DTMF Encoding And Decoding
  • Priority Scan Function
  • Duplex Work at A / B Areas , One Area TX , Another Area RX
  • All Calls , Group Calls And Selective Calls
  • QT / DQT Scan
  • Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz
  • VOX and SOS Function
  • Incoming Message Display Caller ID
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
  • Chinese or English Voice Guide
  • Reverse Frequency
  • Stopwatch , Scramlber , Compander

TECHNICAL  SPECIFICATION
General
   Audio Power ≤500 mW
   Operating Temperature -20 ℃~+40 ℃
   Voltage 13.8 VDC
   Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
Frequency Range    Suitable For Different Countries or Areas
   136-174 & 400-480MHz (RX/TX)
   76-108MHz (FM , RX , Setp 100K)
   Memory Channels 999
   Mode F2D / F3E
   Antenna Impedance 50Ω

Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power 25W
Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)



CUSTOMER  REVIEW
...
Just installed on my truck.
Not a lot of reviews on the net.
I just installed and it works great. The lcd looks good during night. Haven't test the power of it. But so far so good.
