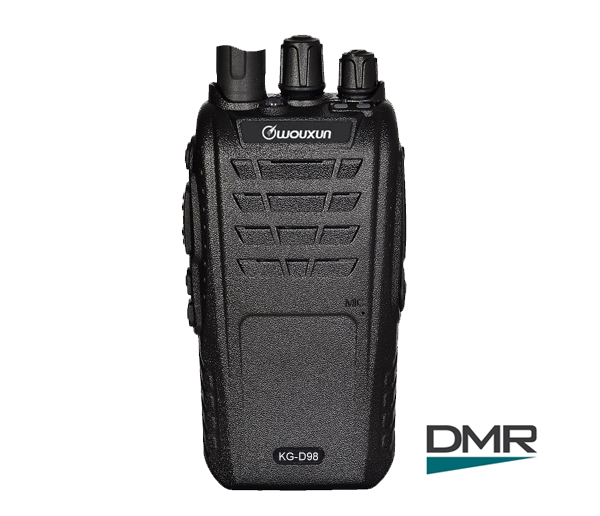

Digital Two Way Radio KG-D98

kg-d98
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  CATALOG


Secure Communication
Besides The Encryption Inherent to Digital Technology, The KG-D88 Radios
Provide Enhanced Encryption Capabilities. This Process Includes End-to-End
Encryption And Over-the-air Encryption

Superior Voice
With The Adoption of The AGC Technology in Combination With The Application
of Narrowband Codec And Digital Error Correction Technologies, The KG-D88
Radios Are Capable of Ensuring Your Voice is Clear And Crisp Even in Noisy
Environments or At The Edge of The Coverage Area

Higher Spectrum Efficiency And Channel Capacity
The TDMA Technology Allows Twice The Channels Based on The Same
Spectrum Resource , This Relieves The Stress of Increasing Shortage in
Spectrum Resource


RADIO  FUNCTIONS
  • 3072 Channel , 1024 Contacts , 255 Receiving Group
  • 250 Areas , 16 Scan List
  • Program Key
  • Digit Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Relay / Talkaround
  • Transmit Time-Out Alert
  • FM Radio
  • Firmware Upgrade
  • Radio Program Password
  • Power Save Mode
  • Tail Elimination
  • Lone Worker
  • Radio Disable or Enable
  • ARTS Function
  • Detection
  • Call Alert
  • Flashlight
  • CTCSS Encoding And Decoding , Support Non-Standard
  • DTMF Encoding And Decoding
  • Digital Encryption AES256 ( NEW )

TECHNICAL  SPECIFICATION
General
   Frequency Range 136-174 MHz or 400-480 MHz or PMR446
   Channel Number 3072
   Operating Temperature -20℃~+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4 VDC
Receiver
   Analog Receive Sensitivity 0.25µV @ 12dB SINAD
   Digital Receive Sensitivity 0.25µV ( BER:5% )
   Adjacent Channel Selectivity ≤60dB @ 12.5KHz
   Audio Response +1dB ~ -3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data+Voice) : 7K60EXE
   Adjancent Channel Power ≤-60dB
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB ~ -3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz @ 12.5KHz
   Output Power VHF / UHF ( H : 4W , L : 1W) , PMR ( 0.5W )


STANDARD  ACCESSORY
BLO-009

ANO-033

OTH-005

OTH-001
battery BLO-009,Battery

antenna ANO-033,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-009



charger CHA-009,Desktop-Charger



Desktop Charger
