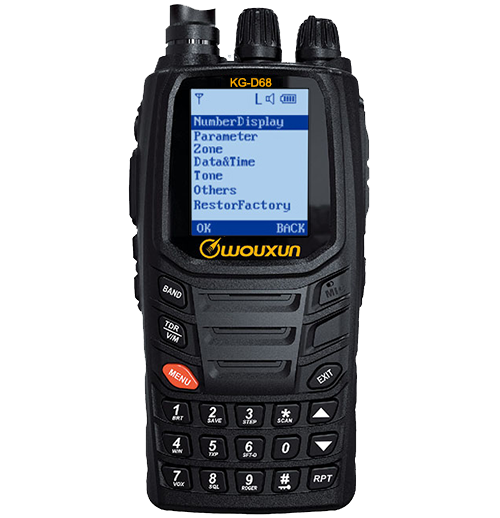

radio menu Digital and Analogue Two Way Radio KG-D68



  CLICK HERE CLOSE LIST radio list

kg-d68

Send Radio Order Message

MAIN  FUNCTIONS
  • English Voice Guide
  • Power Save
  • Transmit Overtime Forbidden
  • Inner Microphone Gain
  • Low Voltage Voice Prompt
  • SOS Alarm And VOX Function
  • ANI ID
  • Scan Group Setting
  • Scan Channel Selection
  • Digital Encryption
  • LED Flashlight
  • Multi-Function Program for Sidekeys
  • One Key Switch Digital / Analogue Mode
  • One Key Switch High / Low Power
  • PTT ID
  • Contact Edit
  • Remote Control , Remote Monitor
  • MSG Send and Receive
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 400-470MHz
   Channel Spacing Digital : 12.5KHz
   Channel Number 1000
   Standard Package 2000mAh , Lithium-ion
   Working Temperature -20℃~+50℃
   Storage Temperature -40℃~+80℃
   Working Voltage 7.4VDC
   Working Currency < 1300mA
Receiver
   Frequency Stability ±2.5ppm
   Inter-modulation 65dB
   Co-channel Rejection -8dB@12.5KHz
   Spurious Inhibition -57dBm@<1GHz , -47dBm@>1GHz
   Block 84dB
   Adjacent Channel Selectivity 60dB@12.5KHz
   Spurious Response ≥70dB
   Regulated Audio Power 1W
   Digital Sensitivity 0.3µV / -117.4dBm(BER 5%)
0.7µV / -110dBm(BER 1%)

Transmitter
   Transmission Power ≤5W
   FM Noise 40dB@12.5KHz
   Transmission Spurious -36dBm@<1GHz , -30dBm@>1GHz
   Adjacent Power -60dB@12.5KHz
   Bandwidth Limit 2.5KHz@12.5KHz
   Spare Time Slot Power -57dBm
   Modulation Characteristics +1dB~-3dB
   Digital Transmission
   Bit Error Rate
≤3%
   Output Power ≤5W
   4FSK Digital
   Modulation Method
12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE


STANDARD  ACCESSORY
BLO-010   CHA-011   CHA-011   ANO-014
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 2000mAh   Desktop Charger   Power Supply Adaptor   Antenna , 400-470MHz

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
