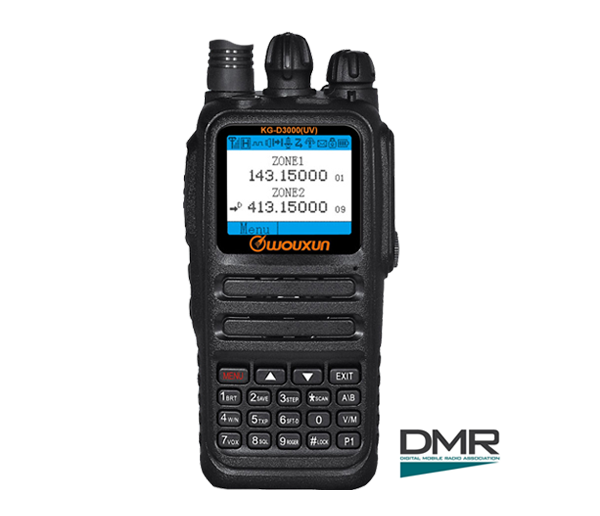

Color Screen , Digital and Analogue Two Way Radio KG-D3000(UV)

kg-d3000(uv)
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • 3072 Channels
  • 160000 DMR Contacts
  • 255 Receiving Groups
  • 250 Zones
  • 16 Scan List
  • Radio ID
  • Radio TX Contacts
  • Duan Band and Dual Display
  • Radio Color Code
  • Support Frequency Mode
  • Program Key
  • Digital Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • One Touch Access / Talk Around
  • Radio Program Password
  • Menu Encryption or Menu Hide
  • Power Save Mode
  • Group Scan
  • Tail Elimination
  • Text Message
  • Radio Disable or Enable
  • Lone Work
  • ARTS Function
  • Flash Light
  • Call Alert
  • CTCSS Encoding and Decoding , Support Non Standard
  • Digital Channel Recording , Continuous Record 8 Hours
  • Play Recording File
  • Customerized Radio Interface
  • DTMF Encoding and Decoding
  • Transmit Time-out Alert
  • FM Radio
  • Fimware Upgradable

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 136-174MHz , 400-520MHz
   Channel Number 3072
   Operating Temperature -20℃～+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4 VDC
   Weight 300 g
   Size 64 x 41 x 130 (mm)
Receiver
   Analog Receive Sensitivity 0.25µV@12dB SINAD
   Digital Receive Sensitivity 0.25µV(BER:5%)
   Adjacent Channel Selectivity ≤60dB@12.5KHz
   Audio Response +1dB~-3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data+Voice) : 7K60EXE
   Adjancent Channel Power ≤-60dB
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB~-3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz@12.5KHz
   Output Power UHF(H : 4W , L : 1W) , VHF(H : 5W , L : 1W)


STANDARD  ACCESSORY
BLO-016   ANO-033   OTH-005   OTH-001
battery ...

antenna ...

hand-strap ...

belt-clip ...
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-025   CHA-025
charger ...

adaptor ...

Desktop Charger   Power Supply Adaptor
