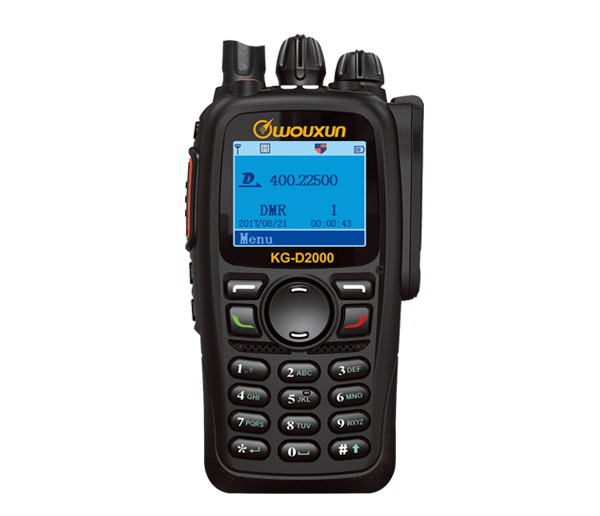

Dual Time Slot , Digital and Analogue Two Way Radio KG-D2000

kg-d2000

Product Resource And Related Webpage Link

... Send Radio Order Message



MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
CUSTOMER  REVIEW
PRODUCT  LIST

MAIN  FUNCTIONS
  • 1000 Channels
  • 1000 Contacts
  • 250 Receiving Groups
  • 250 Zones
  • 250 Scan List
  • Radio ID
  • Radio TX Contacts
  • Radio Receive Groups
  • Radio Color Code
  • Frequency Range
  • Program Key
  • Digital Voice Encryption
  • Emergency Alarm
  • VOX Function
  • Priority Channel
  • Scan TX Designated Channel
  • Low Battery Power Off
  • Selective Backlight
  • One Touch Access / Talk Around
  • Power On Password
  • Radio Program Password
  • Menu Encryption or Menu Hide
  • Power Save Mode
  • Group Scan
  • Tail Elimination
  • Text Message
  • Radio Disable or Enable
  • Lone Work
  • Radio Check
  • Flash Light
  • Clock Display
  • CTCSS , Support Non Standard
  • Recording , Continuous Record 8 Hours
  • Play Recording File
  • Customerized Interface
  • DTMF Encoding and Decoding
  • Transmit Time-out
  • TOT Rekey Delay
  • FM Radio

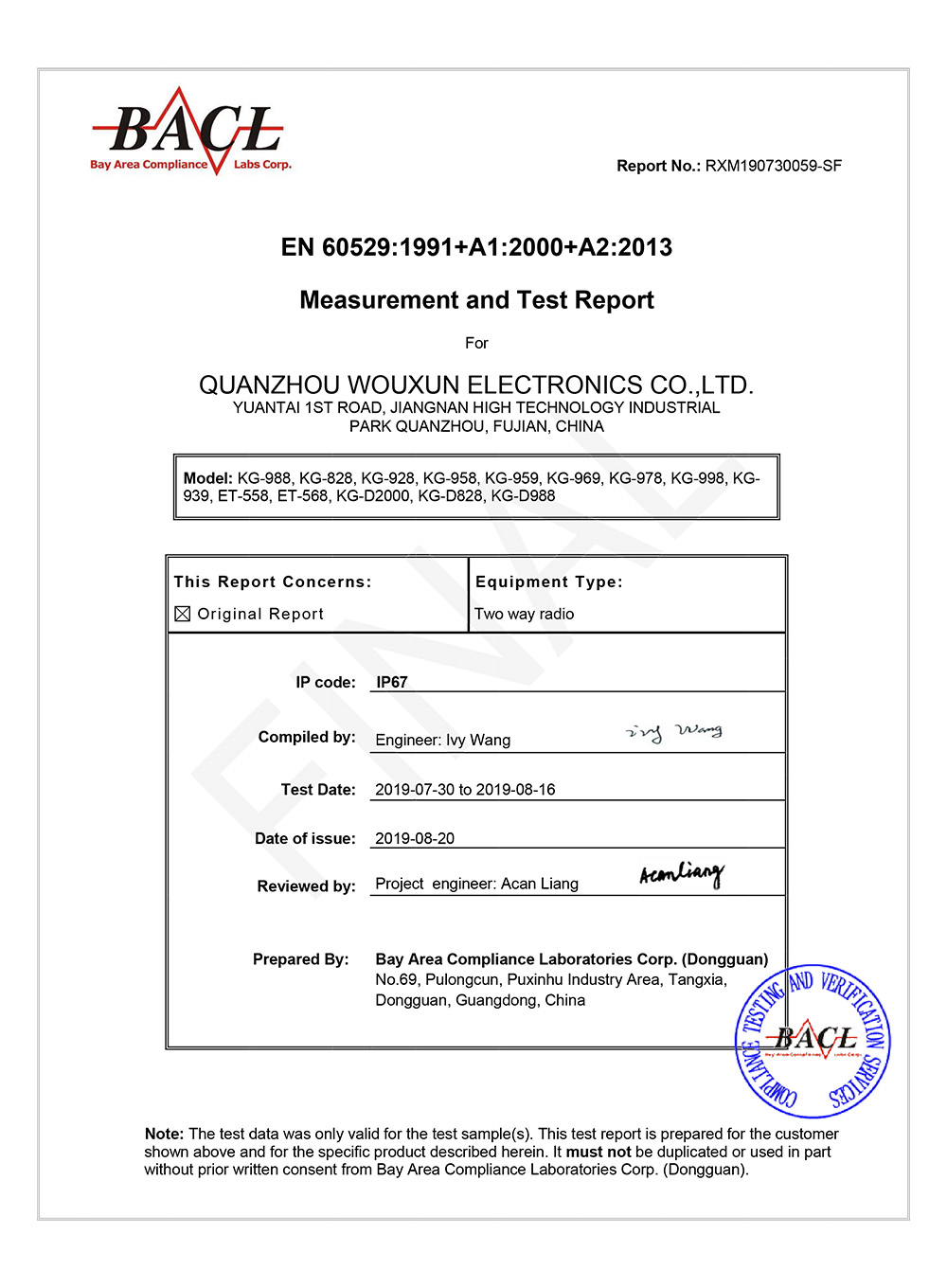

  • Waterproof IP67   ( View IP67 Test Report )
  • Fimware Upgradable
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range 136-174 or 300-350 or 350-400 or 400-470MHz
   Channel Number 1000
   Operating Temperature -20℃~+40℃
   Antenna Resistance 50Ω
   Working Voltage 7.4VDC
   Weight 285 g
   Size 64 x 36 x 130 (mm)
Receiver
   Analog Receive Sensitivity 0.25µV@12dB SINAD
   Digital Receive Sensitivity 0.25µV(BER:5%)
   Adjacent Channel Selectivity ≤60dB@12.5KHz
   Audio Response +1dB~-3dB
   Audio Distortion ≤5%
   Audio Power 1W
   Inter Modulation ≥65dB

Transmitter
   FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E
   4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD
12.5KHz(Data) : 7K60EXE
   Adjancent Channel Power ≤-60dB
   Frequency Stability ±1 PPM
   Audio Distortion ≤5%
   Vocoder Type AMBE+2TM
   Audio Response +1dB~-3dB
   Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3
   Bit Error Ratio ≤5%
   Modulation Limit ±2.5KHz@12.5KHz
   Output Power UHF , H : 4W , L : 1W


STANDARD  ACCESSORY
BLO-017   CHA-022   CHA-022   ANO-026
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 1900mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip
