KG-978 With Waterproof And Fashion Display , Superheterodyne Receiver Type

.

kg-978

Buy Radio Now

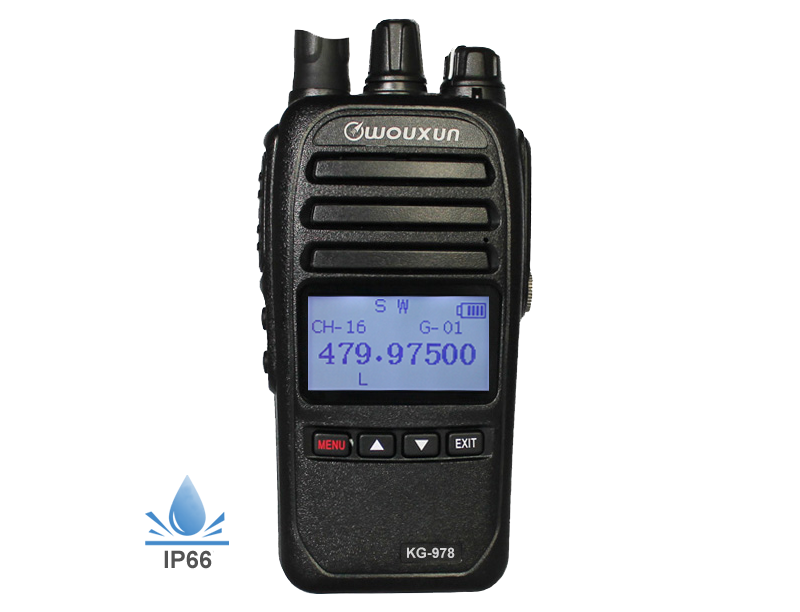

KG-978 portable analog radio is specifically designed to tackle harsh working environments, offering outstanding IP66 dust and water protection. The KG-978 will ensure your productivity and communications aren't hampered by noise or dirt, making it the ideal companion for the construction industry.

RADIO  HIGHLIGHT

Voice Operated Transmit ( VOX )
Hands-Free Transmit is Possible, When Paired With a Compatible Accessory.

Unique Easy-Grip Design
Patented Battery Latch , This Latch Prevents Separation of The Battery
And The Radio if Dropped.

Discrete Version
An All Black Version is Available When Using For Discrete Applications Such As Casinos, Funeral Escorts, Security, and Hotels.


RADIO  FUNCTION
  • DTMF Encoding And Decoding
  • Begin And End Transmitting Beep Prompt
  • 105 Groups DCS , 50 Groups CTCSS
  • CTCSS Scan And DCS Scan
  • Voice Guide
  • Superheterodyne Receiver Type
  • Channel Name Edit And Display
  • Battery Capacity Prompt
  • Programmable by Computer
  • Bandwidth Selectable
  • Reverse Frequency Function
  • Multi Scan Mode ( TO / CO / SE )
  • Displaying Mode : Frequency / Channel / Channel Name
  • TOT ( Time-Out Timer )
  • Busy Channel Lockout
  • Keypad Lock ( Auto / Manual )
  • Wire-Clone Function
  • Water Resistant IP66

TECHNICAL  SPECIFICATION
General
   Frequency Range    Can be Suitable For Different Countries or Areas
   VHF : 66-88 / 136-174 MHz
   UHF : 400-470 MHz
   Memory Channels 256
   Frequency Stability ±2.5 PPM
   Operating Voltage 7.4 VDC
   Operating Temperature  -30℃~+60℃
   Waterproof IP66
   Antenna Impedance 50 Ω
   Operating Way Simplex of Co-Channel or Dis-Channel
Transmitter
   Frequency Stability ±2.5 PPM
   RF Carrier Power UHF: 4W , VHF: 5W
   Effective Radiation Power Power Changes Not Exceed
Preset Value ±7.5dB
   Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
   Audio Modulation +3dB ( Pre-emphasis by 6dB Between 0.3-3KHz )
   Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Spurious Radiation ≤-30dBm
   Inter Modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%

Receiver
   Sensitivity (12dB SINAD) 0.16µV
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Audio Output Power 500mW
   Audio Distortion ≤5%
   Audio Response ( 300-3000Hz )  +1 to -3dB
   Co-channel Rejection ≥ -8.0dB
   Performance of Amplitude
   Limiter
≤ 3
   Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Inter-modulation ≥65 dB
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz ≤ -57dBm
1GHz-4GHz ≤ -47dBm

STANDARD  ACCESSORY
BLO-016

ANO-012

OTH-005

OTH-001
battery BLO-016,Battery

antenna ANO-012,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-001,Belt-Clip
Li-ion Battery Pack , 2600mAh   Antenna   Hand Strap   Belt Clip

CHA-012

CHA-012


charger CHA-012,Desktop-Charger

charger CHA-012,Power-Supply-Adaptor


Desktop Charger   Power Supply Adaptor

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
