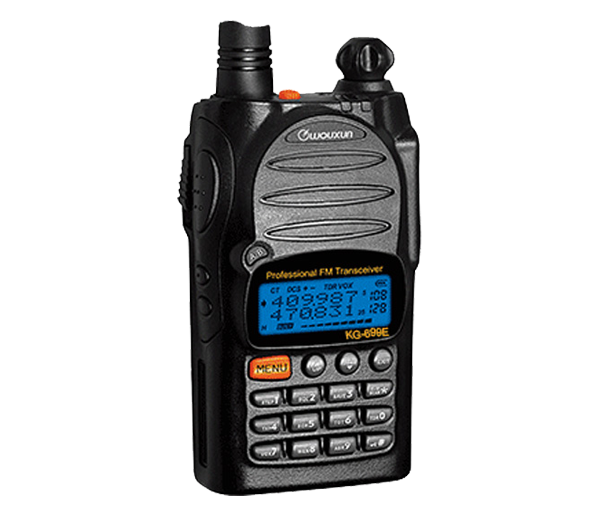

Two Way Radio KG-699E

kg-699e
 Product Resource And Related Webpage Link
... Send Personal Order





RADIO  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

RADIO  FUNCTION
  • DTMF Encoding And Decoding
  • High / Low Power Selection
  • ANI ( Caller ID ) , PTT ID
  • TOT (Time-Out Timer )
  • VOX Transmission ( Level Adjustable )
  • All Calls , Group Calls , Selective Calls
  • 105 Groups DCS , 50 Groups CTCSS
  • Multi Scan Mode ( TO / CO / SE )
  • FM Radio
  • Busy Channel Lockout
  • Wire-Clone Function
  • Superheterodyne Receiver Type
  • Wide / Narrow Bandwidth Selection

TECHNICAL  SPECIFICATION
   Frequency Ranges    VHF: 66-88 / 136-174 / 245-246 MHz
   UHF:300-350 / 400-470 / 450-520 MHz
   Channel Spacing Wide : 25KHz , Narrow : 12.5KHz
   Output Power VHF=5W / 1W , UHF=4W / 1W
   Step 5 / 6.25 / 10 / 12.5 / 25 KHz
   Memory Channels 128
   Voltage 7.4 VDC
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50 Ω
   Dimension 61 x 38 x 117 (MM)
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤5 KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5 PPM
   Sensitivity (12dB SINAD) ≤0.2 µV
   Audio Output power ≥500 mW
   Spurious Radiation ≤-60 dB
   Waterproof IP55
   Weight 240 G

STANDARD  ACCESSORY
BLO-004

ANO-003

OTH-005

OTH-003
battery BLO-004,Battery

antenna ANO-003,Antenna

hand-strap OTH-005,Hand-Strap

belt-clip OTH-003,Belt-Clip
Li-ion Battery Pack , 1700mAh   Antenna   Hand Strap   Belt Clip

CHA-003



charger CHA-003,Desktop-Charger



Desktop Charger
