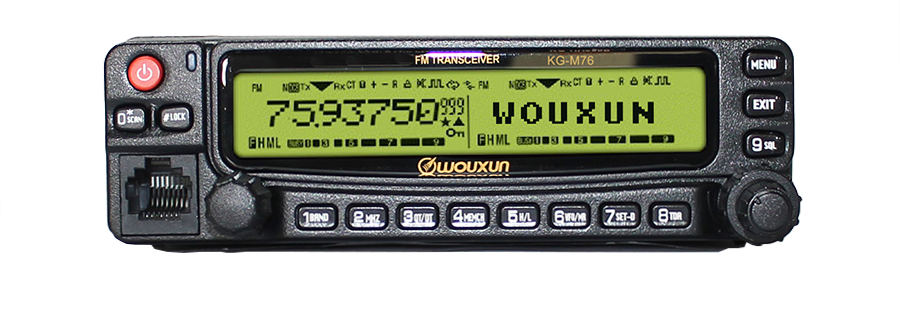

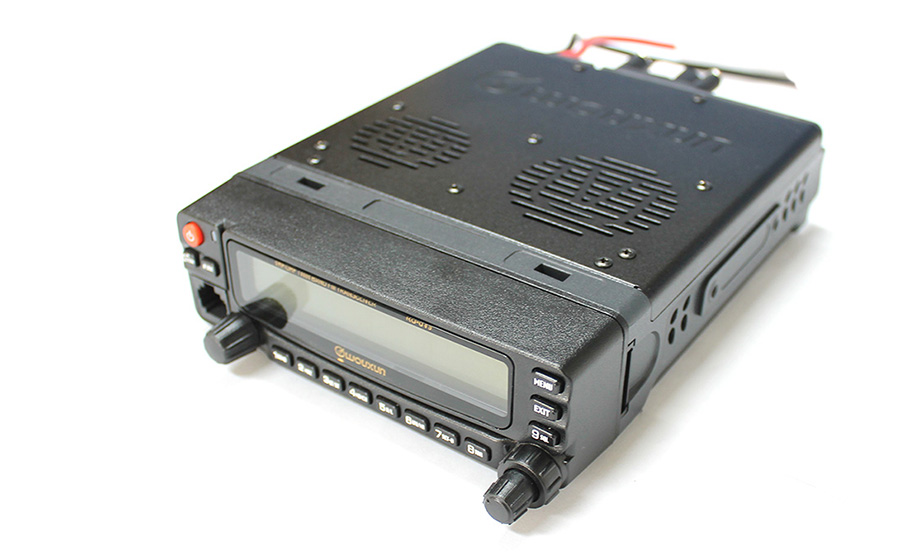

Mobile Radio KG-M76

.

kg-m76 kg-m76

Buy Radio Now

RADIO  FUNCTIONS
  • CTCSS / DCS Encoding And Decoding
  • Non-Standard CTCSS / DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Caller ID Display
  • Voice Scrambler
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Superheterodyne Receiver Type
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Group Calls , All Calls , Selective Calls
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Voice Guide
  • Automatic Temperature Detection
  • Multiple Scanning Ways
  • Remote Control Setting
  • Multiple Setting For Cooling Fan
  • DTMF Encode And Decode

TECHNICAL  SPECIFICATION
General
   Frequency Range 66-88 MHz
   Frequency Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃~+60℃
   Voltage 13.8 VDC±15%
   Antenna Impedance 50Ω
   Weight 1438 G
   Dimension 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB (0.3 ~ 3KHz) +1~-3dB (0.3 ~ 3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity VHF: 0.25µV (12dB SINAD )

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB (0.3 ~ 3KHz) +1~-3dB (0.3 ~ 3KHz)


STANDARD  ACCESSORY
MMO-001   SAO-001   SAO-002   MBO-001
microphone MMO-001,Hand-Microphone

panel ...

panel ...

bracket ...
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001   PWO-002   SCO-002   SSO-001
bracket ...

cord ...

cable ...

screw ...
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-015   ANO-016
power ...

cable ...

antenna ...

mount ...
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
