radio menu New Step 8.33K , Cross Band Repeater , Two Way Radio KG-UV9K



  CLICK HERE CLOSE LIST radio list

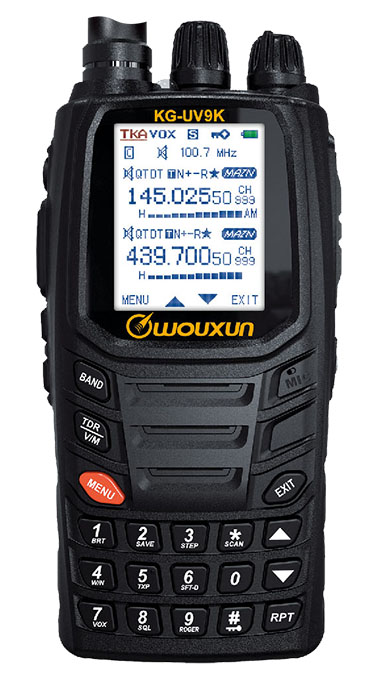

KG-UV9K

MORE FUNCTIONS
  main function Cross Band Repeater
main function Large Color Screen
main function Completely turn off display screen background light
main function Completely trun off flickering indicator light
main function Dual Receiving
main function Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously)
main function RX on the same/different bands of A&B areas simultaneously
main function Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency
main function Channel Groups Scanning
main function Memory Channels 999
main function QT/DQT Encoding/Decoding,QT/DQT Scan
main function Non-Standard CTCSS can be set arbitrarily
main function VOX and SOS function
main function Reverse Frequency		 main function mplitude-frequency PTT settings
main function ncoming Message Display Caller ID display
main function DTMF Encoding&Decoding
main function All Calls,Group Calls And Selective Calls
main function PriorRemote Alarmity Scan Function
main function Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
main function Voice Guide:Chinese/English
main function Chinese/English Screen Display
main function English Channel Name Edit
main function Bright Flashlight illumination
main function Single-Tone Pulse Frequency:2100Hz/ 1750Hz/1000Hz/1450Hz
main function Stopwatch
main function Multi Definition for Sidekeys
main function Superheterodyne Receiver Type

TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas

   1 TX: 136-174MHZ(FM)
              400-512MHZ(FM)
    2 RX: 76-108MHZ(FM)
             108-136MHZ(air ground)
             136-180MHZ(FM)
             230-250MHZ(FM)
             350-400MHZ(FM)
             400-512MHZ(FM)
             700-985MHZ(FM)
   Step 2.5 / 5.0 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 490 g
   Size 123 x 58 x 31 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:5W , M:2W , L:1W
VHF H:4W , M:2W , L:1W


STANDARD  ACCESSORY
BLO-010   CHA-011   CHA-011   OTH-001
battery

charger

power adapotr

belt clip
Li-ion Battery Pack , 2000mAh   Desktop Charger   Power Supply Adaptor   Belt Clip

OTH-005   ANO-014
hand strap

antenna

Hand Strap   Antenna

OPTIONAL  ACCESSORY
BLO-012   CHA-013   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-004
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-012   AAO-001   AAO-002
antenna

adaptor

adaptor

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
