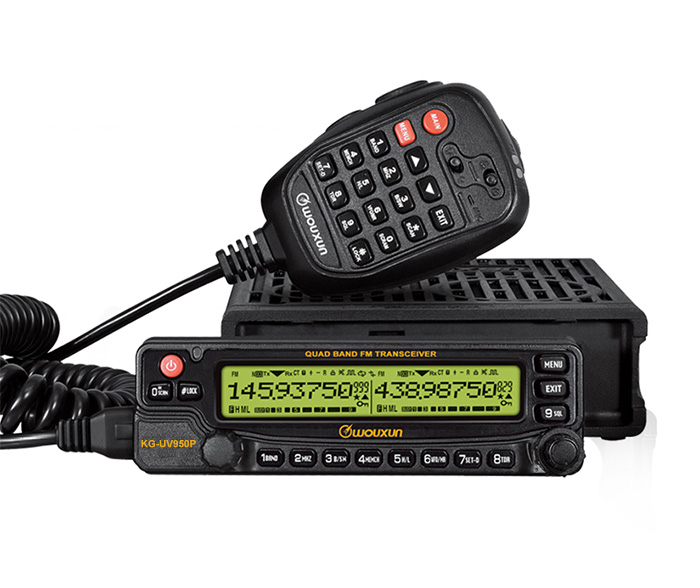

radio menu Quad Bands Transmission , Eight Bands Reception , Car Mobile Radio KG-UV950P



  CLICK HERE CLOSE LIST radio list
kg-uv950p
main function Eight Bands for Receiving, Four Bands(Including SW) for Transmitting main function Dual Frequency Display, Dual Independant Operation System
Wide receive and transmit frequency range can be compatible the communication
with the other wider product range. At the same time, use different frequency range
can make the communication distance longer for different surroudings.
Completely Seperated Two Operation Systems, Dual Track, Dual Speaker, even one
area can not work well, the other area can receive/transmit well. In the emergency communication, improve the stability of communication.
main function Remote Control Function main function Unidirectional or Two Way Cross Band Repeater
Use remote control function to lock, power on/off, monitor, and change the current frequency, CTCSS/DCS of the remote radio. Use the repeater function , it can realize the signal repeater from V band to U band, or U band to V band.
order radios
MORE FUNCTIONS
  main function Twin band /same band simultaneous reception
main function 999memory channels
main function Front panel and radio body flexible for separation
main function QT/DOT encoding and decoding
main function QT/DOT scanning
main function Non-standard CTCSS/DCS setting freely
main function Same -band repeat on two combined radios
main function High power output
main function Dual track and multi-way loudspeakers
main function Hand microphone DTMF with loudspeakers, receiving indicator
     and volume adjuster
main function Caller ID display
main function DTMF encoding and decoding
main function Group calls, all calls and selective calls
main function 8 groups of scrambler
main function Priority channel scanning
main function APO power management
main function Wide / narrow bandwidth select able
main function Voice guide
main function Automatic temperature detection
main function Stun/kill function
main function Single audio pulse frequency
main function Multiple back light color select able
main function Scan channel adding /deleting
main function Grouping channel scanning
main function Multiple scanning ways
main functionSuperheterodyne Receiver Type
main function Multiple setting for cooling fan

TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas
   TX , FM
   26-29.995MHz / 50-53.995MHz / 136-174.995MHz
   400-480.995MHz
   RX , FM
   26-29.995MHz / 50-54.995MHz / 65-108MHz
   108-180.995MHz / 320-349.995MHz
   400-480.995MHz / 700-987.995MHz
   RX , AM
   108MHz-136MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃~+60℃
   Voltage 13.8VDC±15%
   Antenna Impedance 50Ω
   Weight 1438 g
   Size 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Output Power VHF(5W/10W/25W/50W)    UHF(5W/10W/25W/40W)


STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003   SAO-001   SAO-002   MBO-001
microphone ...

panel ...

panel ...

bracket ...
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001   PWO-002   SCO-002   SSO-001
bracket ...

cord ...

cable ...

screw ...
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-035   ANO-016
power ...

cable ...

antenna ...

mount ...
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
