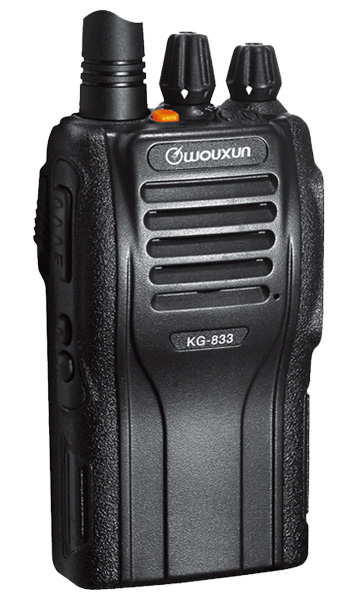

radio menu Two Way Radio KG-833



  CLICK HERE CLOSE LIST radio list


kg-833




MAIN FUNCTIONS
main function 16 memory channels
main function 8 groups scrambler (Optional)
main function DTMF Encoding and Decoding Function
main function High/Low power can changeable by top key
main function 105 groups D.C.S/50 groups CTCSS
main function DCS/CTCSS of RX and TX can be set respectively
main function VOX Transmission
main function Busy channel lockout
main function Distant alarm
main function Multi scan mode (TO/CO/SE)
main function Bandwidth Selection (25KHz/12.5KHz)
main function Inspection, monitor, stun, kill and emergency alarm
main function Calling ring and ring overtime auto answer
main function Multi silent mode (QT/QTADT/QTXDT)
main functionSuperheterodyne Receiver Type
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range    VHF: 66-88/136-174/245-246MHz
   UHF: 300-350/350-390/400-470/450-520MHz
   Channel Capacity 16
   Channel Spacing 25KHz/12.5KHz
   Maximum Deviation ±5KHz to 25KHz     ±2.5KHz to 12.5KHz
   Frequency Stability ±2.0ppm
   Operating Voltage 7.4V
   Operating Temperature  -30℃～+60℃
   Standby Current 50mA
   Antenna Impedance 50Ω
   Dimension 103×62×39 MM
   Weight 242g
Transmitter
   RF Power Output VHF:5W/1W    UHF:4W/1W    PMR446:0.5W-4W
   Modulation 16KфF3E/11KфF3E
   Spurious and Harmonious -36dBm＜1GHz   -30dBm＞1GHz
    FM Noise 40dB
   Adjacent Channel Power 70dB/60dB
   Audio Distortion ≤5﹪


Receiver
   Sensitivity(12dB SINAD) 0.25μV
   Selectivity 60dB
   Intermodulation 60dB
   Spurious Response Rejection 65dB/70dB
   Audio Power Output 500mW
   Audio Distortion ≤3﹪(0.5W)


STANDARD  ACCESSORY
BLO-004   CHA-001   ANO-003   OTH-003
battery

charger

antenna

clip
Li-ion Battery Pack , 1700mAh   Charger   Antenna   Belt Clip

OTH-005
strap

Hand Strap

OPTIONAL  ACCESSORY
BLO-007   CHA-007   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-001
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-041   ANO-006   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna , 38CM   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
battery case

"AA" Battery Case
