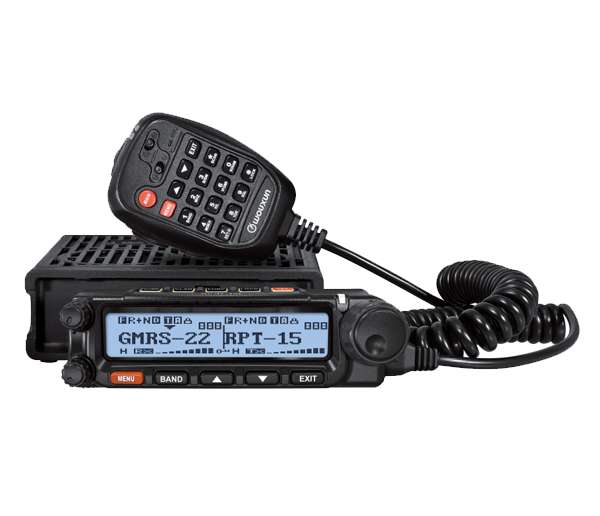

GMRS Car Mobile Radio KG-1000G

kg-1000g
 Product Resource And Related Webpage Link
... Send Personal Order
... Distributor Batch Procurement





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • Tune Specific Frequencies Directly
  • 8 Group Descrambler
  • Broadcast FM Radio
  • Channel Scan
  • Priority Scan
  • Supports 10 Scan Groups
  • Simultaneous Scanning on A / B Areas
  • CTCSS / DCS Tone Scan
  • Wide / Narrow Bandwidth Selectable
  • Busy Channel Lockout
  • Repeater Mode (Requires 2nd Unit)
  • Companding
  • Standard And Non-Standard CTCSS / DCS
  • Split CTCSS / DCS Tone Support
  • Large LCD Dual Frequency Display
  • Three Color Selectable LED
  • Backlit Keypad
  • Auto-Detect AM Transmissions
  • Group Call, All Call and Selective Call
  • Incoming Caller ID Display
  • PC Programmable (Requires Optional Cable)
  • Dual Speakers
  • Channel Name Edit And Display
  • Battery Meter
  • Minimum Operating Voltage Settings
  • Adjustable Cooling Fan Control
  • Automatic Temperature Testing
  • APO Power Management
  • Time out Timer
  • Keypad Lock
  • Audible Button Beeps
  • English Voice Prompts
  • Dual 3.5mm External Speaker Ports
  • Offset Frequency Programmable Receive AM Transmissions
  • Multiple Speaker Output Settings
  • 3 Configurable Front Panel Buttons
  • Backlit DTMF Hand Microphone With Speaker
  • Cooling Fan
  • Remote Front Panel Installation Option
  • DTMF Encoding and Decoding
  • Stun and Kill Functio
  • Built in NOAA Weather Channels
  • GMRS Repeater-Capable Radio

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range     30 GMRS Channels
    8 GMRS Repeater Channels
    50-53.995 & 108-179-995 MHz , RX
    320-349.995 & 400-479.995 MHz , RX
    700-985 MHz , RX
   Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃～+60℃
   Voltage 13.8VDC ±15%
   Antenna Impedance 50 Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power Transceiver ≤3W , Hand Microphone ≤1W
   Sensitivity UHF / VHF：0.25µV（12dB SINAD）

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥40dB 360dB
   Output Power 50W / 25W / 5W / 0.5W


STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003   SAO-001   SAO-002   MBO-001
microphone ...

panel ...

panel ...

bracket ...
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001   PWO-002   SCO-002   SSO-001
bracket ...

cord ...

cable ...

screw ...
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-035   ANO-016
power ...

cable ...

antenna ...

mount ...
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
