 Unidirectional or Two Way Cross Band Repeater |
Dual Frequency Display, Dual Independant Operation System |

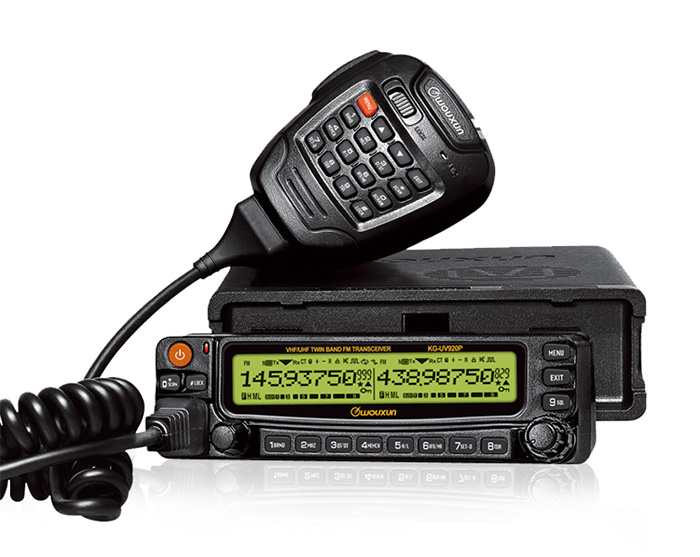

Use the repeater function of KG-UV920P, it can realize the signal repeater from V band
to U band, or U band to V band. |
Completely Seperated Two Operation Systems, Dual Track, Dual Speaker, even one
area can not work well, the other area can receive/transmit well. In the emergency communication, improve the stability of communication. |
| Remote Control Function |
Voice scrambler, DTMF Encode&Decode |
| Use remote control function to lock, power on/off, monitor, and change the current frequency, CTCSS/DCS of the remote radio. |
Voice scrambler can reinforce the safety of communication, 8 groups scramblers, DTMF encode&decode,and also can build data transfer. |
 |
| Intergration |
| Frequency Range |
suitable for different countries or areas
RX and TX
136-174MHz & 400-470MHz
136-174MHz & 400-480MHz
136-174MHz & 216-280MHz
136-174MHz & 420-520MHz
144-146MHz & 430-440MHz
144-146MHz & 222-225MHz
144-148MHz & 420-520MHz
RX , FM , 65MHz-108MHz |
| Step |
5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz |
| Channel Number |
999 |
| Work Mode |
F2D/F3E |
| Operating Temperature |
-20℃～+60℃ |
| Voltage |
13.8VDC±15% |
| Antenna Impedance |
50Ω |
| Weight |
1438 g |
| Size |
140 x 44 x 207 MM |
|
| Receiver |
| |
Wide |
Narrow |
| Adjacent Channel Selectivity |
≤70dB |
≤60dB |
| Inter Modulation |
≤65dB |
≤60dB |
| Spurious Response |
≤70dB |
≤70dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
| Signal to Noise Ratio |
≥45dB |
≥40dB |
| Audio Distortion |
≤5% |
| Audio Power |
transceiver≤3w , hand microphone≤1w |
| Sensitivity |
UHF/VHF：0.25µV（12dB SINAD） |
|
| Transmitter |
| |
Wide |
Narrow |
| Adjacent Channel Power |
≥70dB |
≥60dB |
| Type of Modulation |
16K F3E |
11K F3E |
| Spurious |
≥60dB |
≥60dB |
| Signal to Noise Ratio |
≥40dB |
≥36dB |
| Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~3KHz) |
|
| |
|
| All Specifications Are According to Related Standard Tests , Since The Growing Development of Technology , If There is Any Change to The Above Specfication Are Without Notice. |
