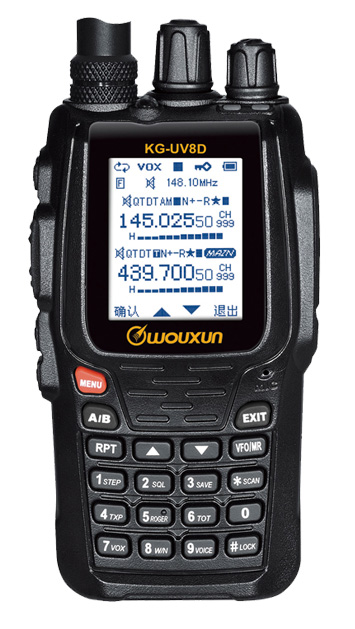

radio menu Dual Bands , Large Color Screen , Two Way Radio KG-UV8D



  CLICK HERE CLOSE LIST radio list


kg-uv8d

main function Reverse Frequency
main function Stopwatch
main function All Calls,Group Calls And Selective Calls
main function Priority Scan Function
main function Remote Alarm
MAIN FUNCTIONS
main function Dulex Repeater(VHF to UHFor UHF to VHF)
main function Duplex Work Mode(TX on one area while RX on the other area simultaneously )
main function Dual Receiving(RX on the same/different bands of A&B areas simultaneously)
main function Dual Display,Dual Band Display on Large Screen,Two Independent Operation System
main function Frequency Offset and Direction Programmable in Repeater Mode UHF/VHF or VHF/UHF
     Cross-Band Repeater
main function 999 Memory Channels
main function QT/DQT Encoding/Decoding,QT/DQT Scan
main function VOX and SOS Funcion
main function Multi Definition for Sidekeys
main function Incoming Message Display Caller ID display
main function DTMF Encoding&Decoding
main function Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz)
main function Voice Guide:Chinese/English
main function Chinese/English Screen Display
main function Bright Flashlight illumination
main function Single-Tone Pulse Frequency:2100Hz/1750Hz/1000Hz/1450Hz(signalling for activating repeater)
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas

   136-174MHz & 400-470MHz
   136-174MHz & 400-480MHz
   136-174MHz & 420-520MHz
   144-146MHz & 430-440MHz
   144-148MHz & 420-520MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 490 g
   Size 125 x 62 x 33 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF：0.25µV（12dB SINAD）

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W


STANDARD  ACCESSORY
BLO-006   CHA-009   ANO-011   OTH-003
battery

charger

antenna

belt clip
Li-ion Battery Pack , 1700mAh   Desktop Charger   Antenna   Belt Clip

OTH-005
hand strap

Hand Strap

OPTIONAL  ACCESSORY
BLO-009   CHA-010   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-003
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-011   AAO-001   AAO-002
antenna

adaptor

adaptor

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
