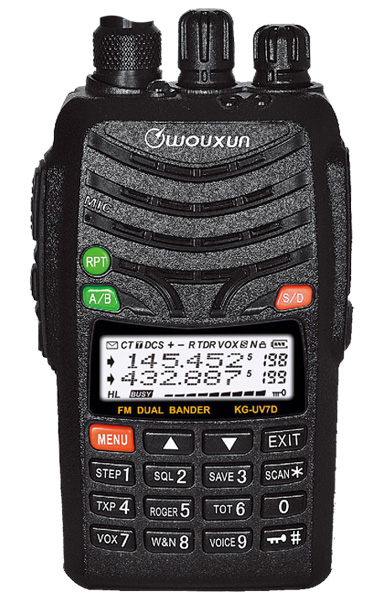

radio menu High Power Output , Dual Band Two Way Radio KG-UV7D



  CLICK HERE CLOSE LIST radio list

KG-UV7D

MAIN FUNCTIONS
  • DTMF Encoding And Decoding
  • VOX And SOS Function
  • Work Mode : U-V , V-U , V-V , U-U Can Be Set Freely
  • Bright Flashlight Iumination
  • Band Can be Set Freely VHF TX-UHF RX or UHF TX-VHF RX
  • Digital FM Radio
  • Bandwidth Selectable
  • Multi Scan Mode
  • Priority Scan , Add Scanning Channel
  • High / Low Power Selection
  • Channel Name Edit And Display
  • Burst Tone 1750Hz
  • 50 Groups CTCSS , 105 Groups DCS
  • Low Voltage Voice Prompt
  • Busy Channel Lockout
  • Transmit Overtime Voice Prompt
  • Begin / End Transmitting Beep Prompt
  • Auto / Manual Keypad Lock
  • Wire Clone , Programmable by Computer
  • Display Selectable on Channel Mode
  • Power on Display Message Customizable
  • IP55 Waterproof
  • English Voice Guide
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
General
   Frequency Range Can Be Suitable For Different Countries or Areas
144-146 & 430-440MHz (RX/TX)
136-174 & 400-480MHz (RX/TX)
136-174 & 420-520MHz (RX/TX)
50-54 & 136-174MHz (RX/TX)
FM: 76-108MHz (RX)
   Memory Channels 199
   Step Frequency 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
2.5KHz (Optional)
   Frequency Stability ±2.5PPM
   Operating Voltage 7.4 VDC
   Operating Temperature  -30℃~+60℃
   Waterproof IP 55
   Antenna Impedance 50Ω
   Dimension 65 x 119 x 39 MM
   Weight 253 G
Transmitter
   Frequency Stability ±2.5PPM
   RF Carrier Power UHF: 5W , VHF: 7W
   Effective Radiation Power (ERP) Preset Value ±7.5dB
   Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
   Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
   Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Spurious Radiation ≤-30dBm
   Inter-modulation Attenuation ≥40dB
   Modulation Distortion ≤10%
   Residual FM ≤-35dB
   Residual AM ≤3%

Receiver
   Sensitivity (12dB SINAD) 0.16µV
   Squelch Rejection Sensitivity ≤0.8µV
   Squelch Sensitivity ≤0.2µV
   Audio Output power 500mW
   Audio Distortion ≤5%
   Audio Response (300-3000Hz)  +1 to -3dB
   Co-channel Rejection ≥-8.0dB
   Performance of Amplitude Limiter ≤3
   Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
   Inter-modulation ≥65 dB
   Resistance ≥84 dB
   Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm


STANDARD  ACCESSORY
BLO-004   CHA-003   ANO-032   OTH-003
battery

charger

kg-uv7d antenna

belt clip
Li-ion Battery Pack , 1700mAh   Desktop Charger + Adaptor   Antenna   Belt Clip

OTH-005
hand strap

Hand Strap

OPTIONAL  ACCESSORY
BLO-007   CHA-007   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-001
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-041   ANO-006   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna , 38CM   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
battery case

"AA" Battery Case
