radio menu Dual Bands , 5-Tones , Two Way Radio KG-UV66



  CLICK HERE CLOSE LIST radio list

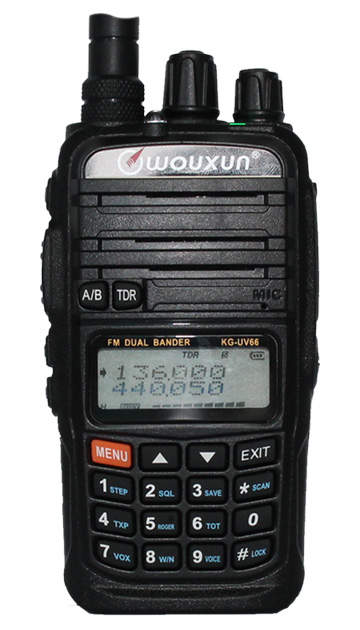

kg-uv66




MAIN FUNCTIONS
main function Dual band , dual frequency , dual reception , dual display
main function Working Mode :U-V,V-U,V-V,U-U can be set freely
main function DTMF Encoding Function
main function CTCSS/DCS Scan(Digital 107groups /Analog 50 groups)
main function TX and RX can set freely, VHF for TX while UHF for RX, OR UHF for TX while VHF for RX
main function Digital FM Radio(76-108MHz)
main function VOX Transmission
main function Memory channels 199
main function Non-Standard CTCSS/DCS
main function Multi definition for sidekeys
main function Bandwidth Selection (25KHz/12.5KHz)
main function Channel name edit and display
main function Multi-scanning and offset function
main function Bright Flashlight Illumination
main function 8 groups of scrambler
main function 5-Tones
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range

suitable for different countries or areas
   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 280 g
   Size 125 x 62 x 33 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF：0.25µV（12dB SINAD）

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF H:4W , L:1W    VHF H:5W , L:1W


STANDARD  ACCESSORY
BLO-006   CHA-009   ANO-011   OTH-003
battery

charger

antenna

belt clip
Li-ion Battery Pack , 1700mAh   Desktop Charger   Antenna   Belt Clip

OTH-005
hand strap

Hand Strap

OPTIONAL  ACCESSORY
BLO-009   CHA-010   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-003
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-011   AAO-001   AAO-002
antenna

adaptor

adaptor

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
