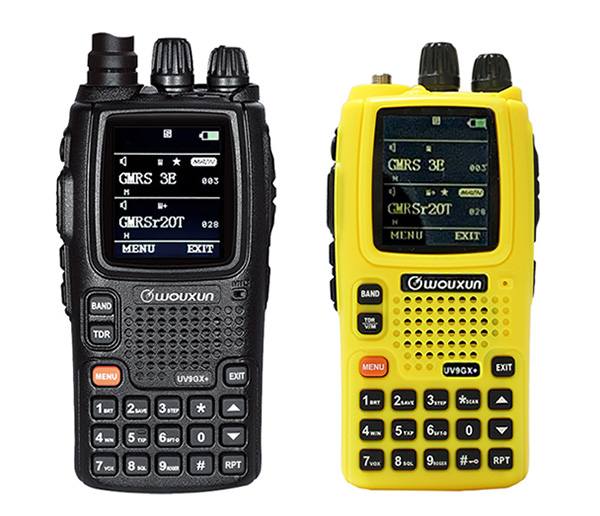

Screen Theme Mode , GMRS Two Way Radio KG-UV9GX

kg-uv9gx
 Product Resource And Related Webpage Link
... Send Radio Order Message





MAIN  FUNCTION
TECHNICAL  SPECIFICATION
ACCESSORY
PRODUCT  LIST

MAIN  FUNCTIONS
  • 3 New Dark Color Screen Modes
  • NOAA Weather Channels
  • Part 95E / 15B FCC Certified
  • AM Air Band
  • Broadcast FM Radio
  • Dual Simultaneous Scanning
  • Wide / Narrow Bandwidth
  • Repeater Reverse
  • Talk-Around Functions
  • 50 CTCSS PL Tones And 105 DCS Privacy Codes
  • CTCSS / DCS Scanning
  • 3 Programable Function Side-Keys
  • Usable Default GMRS Channels & Repeaters
  • 7 Bands Receive
  • New Priority Channel Quick-Jump Feature
  • Extended 1.25m (220 HAM Band) RX Range
  • Roger Beep
  • Bright Flashlight
  • Stiff Knobs
  • Time-Out-Timer
  • 8 Character Alpha Channel Names
  • English Voice Announce

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range     GMRS Channels
   136-174 & 400-480 MHz , RX
   Frequency Step 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20℃～+40℃
   Voltage 7.4 VDC
   Antenna Impedance 50Ω
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF：0.25µV（13dB SINAD）

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power 5W / 2W / 0.5W


STANDARD  ACCESSORY
BLO-012   CHA-011   CHA-011   ANO-014
battery ...

charger ...

adaptor ...

antenna ...
Li-ion Battery Pack , 3200mAh   Desktop Charger   Power Supply Adaptor   Antenna

OTH-005   OTH-001
hand strap ...

belt clip ...

Hand Strap   Belt Clip

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers
Send Accessory Inquiry
