radio menu Dual Band Analogue and Network(Simcard Radio , WCDMA) KG-V55



  CLICK HERE CLOSE LIST radio list

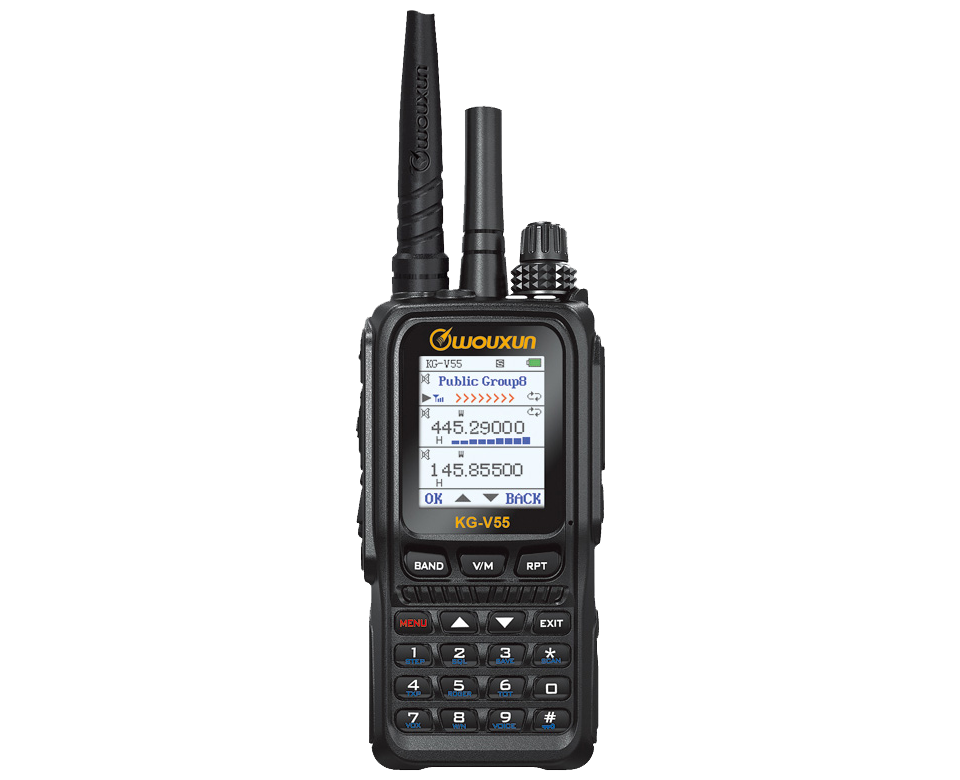

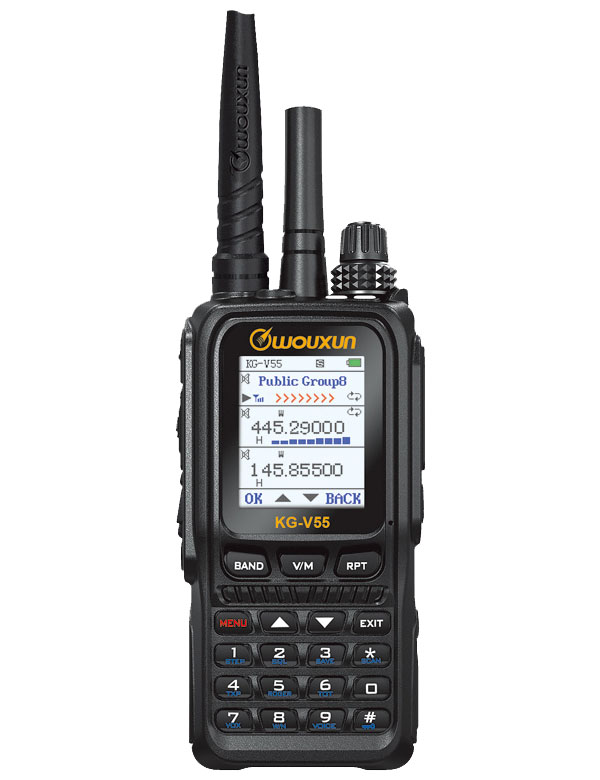

KG-V55

MAIN FUNCTIONS

main function Large color screen
main function Public Network , WCDMA 2100X900MHz

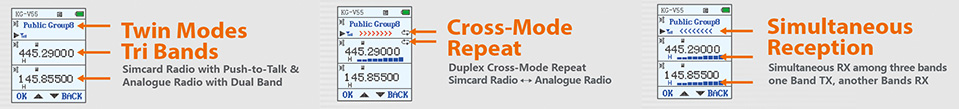

main function Twin Modes & Tri Bands
main function Cross-Mode Repeat , Simcard Radio<->Analogue Radio, Analogue Radio<->Analogue Radio
main function Simultaneous Reception among three bands
main function Duplex work among three bands (one band TX, another bands RX)
main function 200 contacts , Caller ID
main function Offset , Shift Frequency in Analogue Mode
main function UHF/VHF, VHF/UHF cross-band Repeat
main function VOX Function
main function Multi-definition for side keys
main function DTMF Encode and Decode
main function Memory Channels 999
main function Selective Calls, Group Calls, All Calls
main function SOS Emergency Alarm
main function Lamp , Backlight , stopwatch
main function Talk-Around
main function Compander and scrambler
>> Yearly fee for the Platform Administration each radio is charged

order radios

KG-V55
TECHNICAL SPECIFICATION
General
   Audio Power ≤500mW
   Operating Temperature -20℃~+40℃
   Voltage 3.7VDC
   Weight 300 g
   Size 136 x 59 x 34 MM

Public Network
   Work Band WCDMA 2100X900MHz
   Max TX Power 23~25dbm @AII up bits
   RX Sensitivity -106dbm

Analogue
  Frequency Range

   Suitable for different countries or areas
   136-174 & 400-470MHz (RX/TX)
   136-174 & 400-480MHz (RX/TX)
   144-148 & 430-440MHz (RX/TX)
    76-108MHz (FM , RX , Setp 100K)

   Setp 5K/6.25K/12.5K/25K/50K/100K
   Memory Channels 999
   Mode F2D/F3E
   Antenna Impedance 50Ω
Analogue Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≤ 70dB ≤ 60dB
   Inter-Modulation ≤ 65dB ≤ 65dB
   Spurious Response ≤ 70dB ≤ 70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Squelch Sensitivity ≥45dB ≥40dB
   Audio Distortion ≤5%
   Output Power UHF 2.5W , VHF 3.0W

Analogue Receiver
  Wide Narrow
   Modulation 16K F3E 11K F3E
   Effective Radiation Power ≥70dB ≥60dB
   Spurious Response ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Offset ±5KHZ ±2.5KHZ
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Sensitivity UHF : 0.25uV(12dB SINAD)
VHF : 0.25uV(12dB SINAD)



STANDARD ACCESSORY
kg-958 accessory
