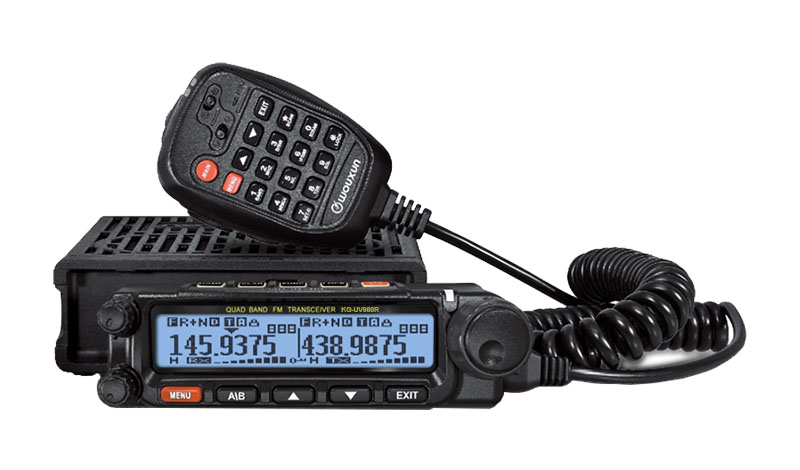

kg-uv980r

MAIN  FUNCTIONS
  • Dual Frequency Display, Dual Independant Operation System
  • Eight Bands for Receiving , Four Bands (Including SW) for Transmitting
  • Twin Band / Same Band Simultaneous Reception
  • 999 Memory Channels
  • Front Panel And Radio Body Flexible For Separation
  • QT/DOT Encoding And Decoding
  • QT/DOT Scanning
  • Non-standard CTCSS/DCS Setting Freely
  • Same Band Repeat on Two Combined Radios
  • Dual Track And Multi-way Loudspeakers
  • Hand Microphone DTMF With Loudspeakers
  • Caller ID Display
  • DTMF Encoding And Decoding
  • Multiple Scanning Ways
  • Group Calls, All Calls And Selective Calls
  • 8 Groups of Scrambler
  • Priority Channel Scanning
  • APO Power Management
  • Wide / Narrow Bandwidth Selectable
  • Chinese or English Voice Guide
  • Automatic Temperature Detection
  • Stun / Kill Function
  • Single Audio Pulse Frequency
  • Multiple Back Light Color Selectable
  • Scan Channel Adding / Deleting
  • Grouping Channel Scanning
  • Multiple Setting for Cooling Fan
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
   TX , FM
   50-54 / 70-77 / 140-170 / 400-470 MHz
   RX , FM
   50-54MHz / 70-77MHz / 108-180.995MHz
  140-170MHz / 320-349.995MHz / 400-470MHz
  700-987.995MHz
   RX , AM
   108MHz-136MHz

   Step 5KHz / 6.25KHz / 10KHz / 12.5KHz
25KHz / 50KHz / 100KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20 ℃~+60 ℃
   Voltage 13.8 VDC±15%
   Antenna Impedance 50 Ω
   Weight 1438 G
   Size 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Output Power VHF(5/10/25/50 W) ,  UHF(5/10/25/40 W)

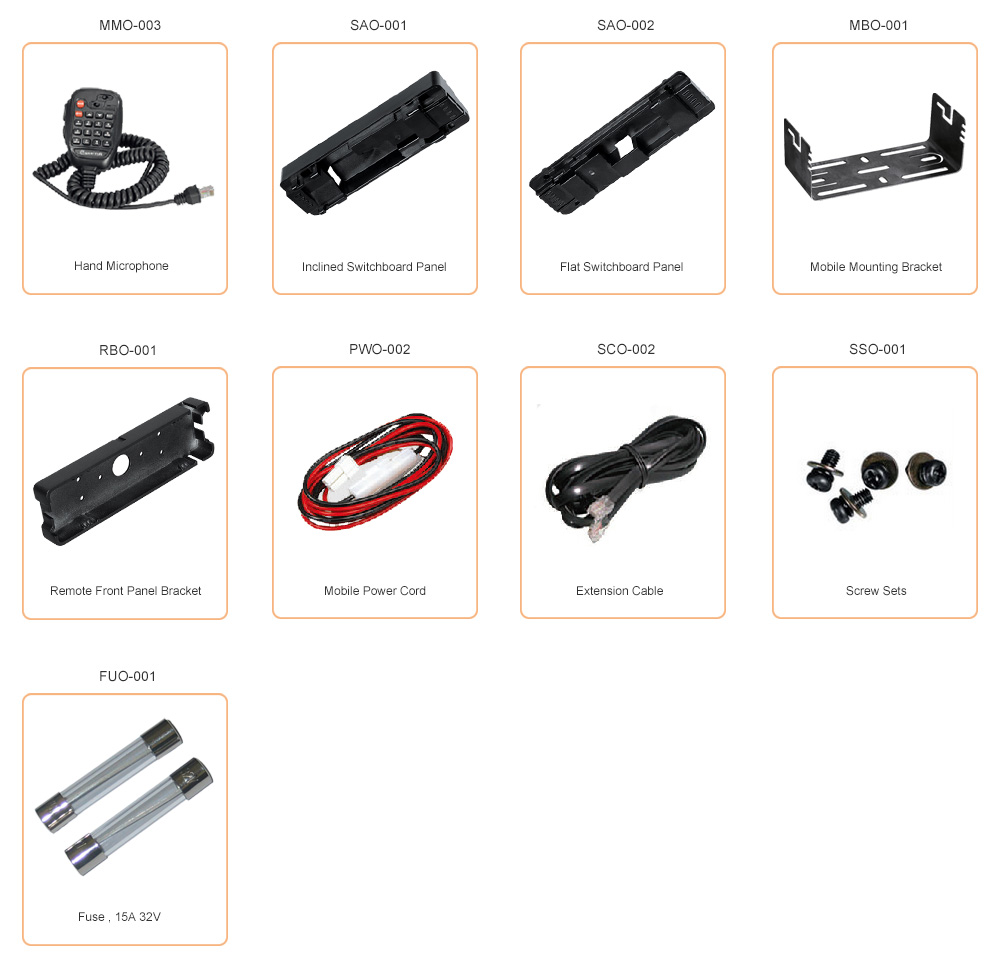

STANDARD  ACCESSORY
kg-uv980r accessory

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-035   ANO-044
power

cable

antenna

mount
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount

Send a Inquiry or Order Message to Wouxun

Please Note That After Send This Message , We Will Reply You Within 72 Hours , If Not Get Any Response On Time , Please Contact Us By Telephone +86-0595-28051265 or Fax +86-0595-28051267


Your Email Address Example : abc@abc.com , Peter@gmail.com  ( * )

Your Interesting Products , Your Personal Information (Optional Part)

...
...
The Message is Being Sent , Please Wait For a Few Seconds.
...

OK , Message Is Sent Successfully

...

Sorry , Possibly Occur Some Mistake



CUSTOMER  REVIEW
...
About KG-UV980R Microphone
When moving a little the direction of the microphone from the mouth, on the other side, the modulation becomes very quick more silent. When the microphone is fully in front of the mouth, it seams that the modulation was very clear and powerfull.
...
This Mobile Radio many advantages in Communication Distance
Several other ham radio people were telling me the following : at a distance between myself and the other stations of 25KM
...
The Ventilation on The Back of The Radio is Working Perfect
The ventilation on the back of the radio is working perfect. The noise level is very low. Totally not disturbing when talking in the microphone. Very positive item. On high power the ventilation is almost starting immediately
...
KG-UV980R Voice Guide is a Perfect Function
A very appreciated function on the Wouxun equipment is the voice when changing parameters or frequency on the radio. When driving the car, the voice is very easy to change between frequencies.
...
UV980R Receiver Has a Very Good Sensivity
The receiver has a very good sensivity. We tried with very weak signals over more than 100 kilometers and we could still receive the other station that was transmitting only 30 watts. The sensivity is more than sufficient for a good hamradio station. Offcourse, a good antenna is also very important but compared with other equipment, the sensivity is very good.
