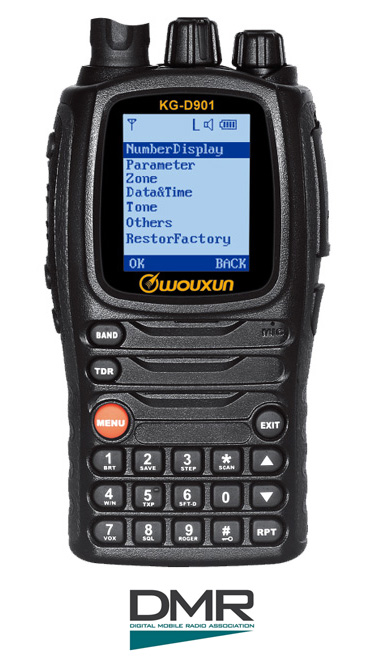

radio menu Call Recording , Digital and Analogue Two Way Radio KG-D901



  CLICK HERE CLOSE LIST radio list


kg-d901

PLAY
MAIN FUNCTIONS
main function English Voice Guide
main function Power Save
main function VOX Function
main function Transmit Overtime Forbidden
main function Inner Microphone Gain
main function Low Voltage Voice Prompt
main function SOS Alarm
main function ANI ID
main function Scan Group Setting
main function Scan Channel Selection
main function Digital Encryption
main function LED Flashlight
main function Multi-Function Program for Sidekeys
main function One Key Switch Digital / Analogue Mode
main function One Key Switch High / Low Power
main function PTT ID
main function Contact Edit
main function Remote Control , Remote Monitor
main function MSG Send and Receive
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range 400-470MHz
   Channel Spacing Digital : 12.5KHz
   Channel Number 1000
   Standard Package 2000mAh , Lithium-ion
   Working Temperature -20℃~+50℃
   Storage Temperature -40℃~+80℃
   Working Voltage 7.4VDC
   Working Currency < 1300mA
   Weight 261 g
   Size 65 x 33 x 124 (mm)
Receiver
   Frequency Stability ±2.5ppm
   Inter-modulation 65dB
   Co-channel Rejection -8dB@12.5KHz
   Spurious Inhibition -57dBm@<1GHz , -47dBm@>1GHz
   Block 84dB
   Adjacent Channel Selectivity 60dB@12.5KHz
   Spurious Response ≥70dB
   Regulated Audio Power 1W
   Digital Sensitivity 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)

Transmitter
   Transmission Power ≤5W
   FM Noise 40dB@12.5KHz
   Transmission Spurious -36dBm@<1GHz , -30dBm@>1GHz
   Adjacent Power -60dB@12.5KHz
   Bandwidth Limit 2.5KHz@12.5KHz
   Spare Time Slot Power -57dBm
   Modulation Characteristics +1dB~-3dB
   Digital Transmission
   Bit Error Rate
≤3%
   Output Power ≤5W
   4FSK Digital
   Modulation Method
12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE
