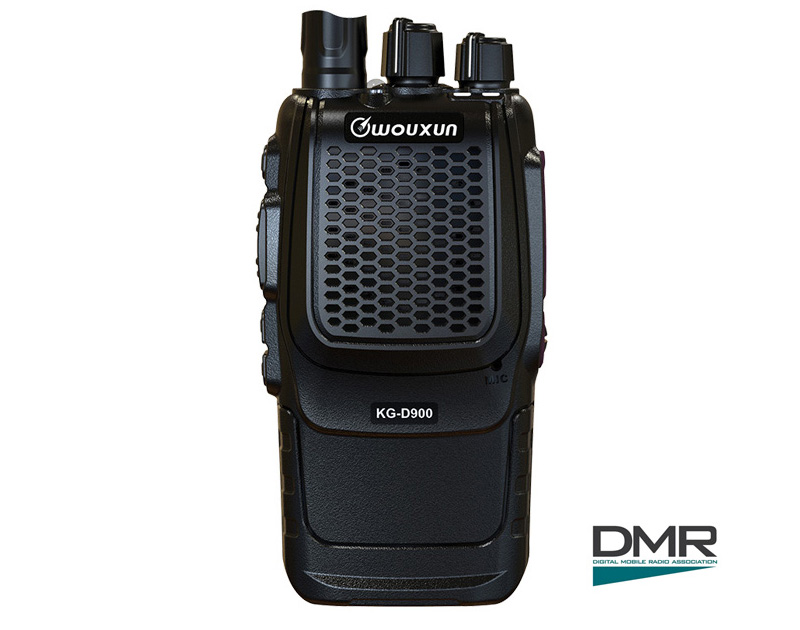

radio menu Digital and Analogue Two Way Radio KG-D900



  CLICK HERE CLOSE LIST radio list


kg-d900

PLAY
MAIN FUNCTIONS
main function High/Low Output Power Switchable
main function Power Save
main function VOX Function
main function Busy Channel Lockout Setting
main function Microphone Modulation Setting
main function Low Voltage Voice Prompt
main function SOS Alarm
main function ANI ID
main function Scan Group Setting
main function Scan Channel Selection
main function Digital Encryption
main function Lamp function
main function Multi-Function Program for Sidekeys
main function One Key Switch Digital / Analogue Mode
main function One Key Switch High / Low Power
main function PTT ID
main function Superheterodyne Receiver Type
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range 400-470MHz
   Channel Spacing Digital : 12.5KHz , Analogue : 12.5/25KHz
   Channel Number 1024
   Standard Package 1700mAh , Lithium-ion
   Working Temperature -20℃~+50℃
   Storage Temperature -40℃~+80℃
   Working Voltage 7.2VDC
   Working Currency < 1300mA
   Weight 248 g
   Size 61 x 32 x 120 (mm)
Receiver
   Frequency Stability ±2.5ppm
   Inter-modulation 65dB
   Co-channel Rejection -8dB@12.5KHz
   Spurious Inhibition -57dBm@<1GHz , -47dBm@>1GHz
   Block 84dB
Adjacent Channel Selectivity 60dB@12.5KHz
   Spurious Response ≥70dB
   Regulated Audio Power 1W
   Digital Sensitivity 0.3µV / -117.4dBm(BER 5%) , 0.7µV / -110dBm(BER 1%)

Transmitter
   Transmission Power ≤5W
   FM Noise 40dB@12.5KHz
   Transmission Spurious -36dBm@<1GHz , -30dBm@>1GHz
   Adjacent Power -60dB@12.5KHz
   Bandwidth Limit 2.5KHz@12.5KHz
   Spare Time Slot Power -57dBm
   Modulation Characteristics +1dB~-3dB
   Digital Transmission
   Bit Error Rate
≤3%
   Output Power ≤5W
   4FSK Digital
   Modulation Method
12.5KHz(data only):7K60FXD
12.5KHz(data+voice):7K60FXE


STANDARD ACCESSORY
kg-d900 accessory

OPTIONAL  ACCESSORY
BLO-009   CHA-010   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-003
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-011   AAO-001   AAO-002
antenna

adaptor

adaptor

Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
