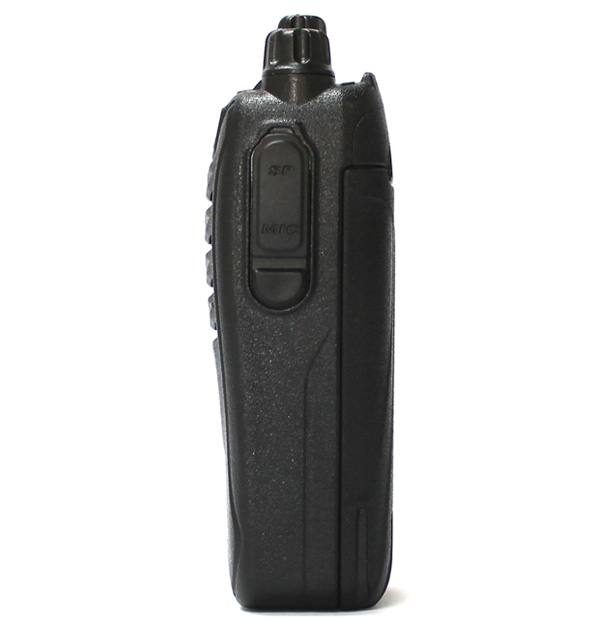

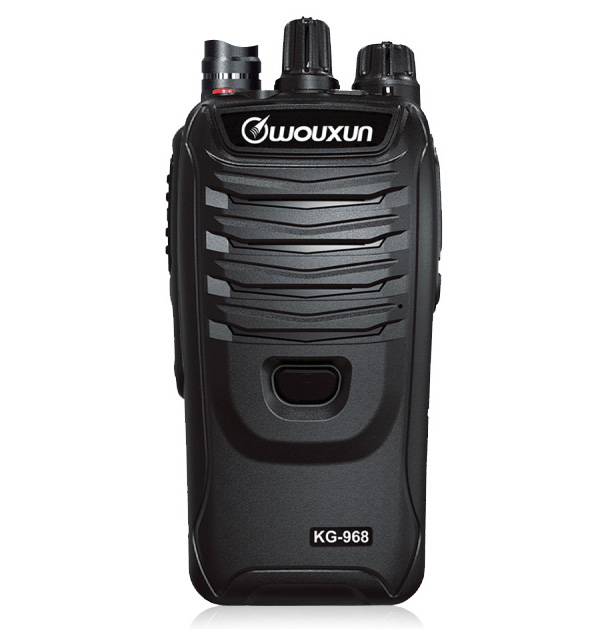

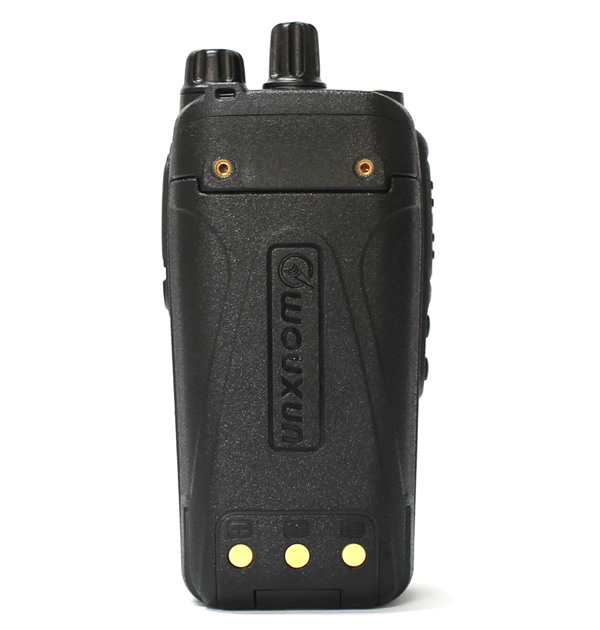

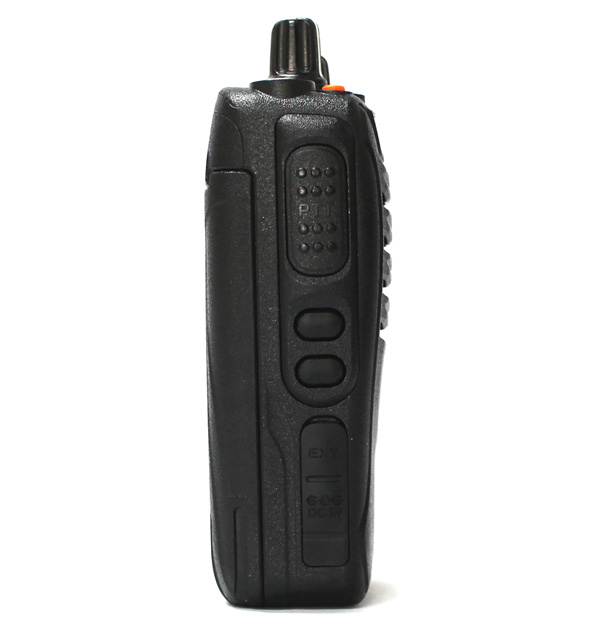

wouxun kg-968

wouxun kg-968 wouxun kg-968 wouxun kg-968 wouxun kg-968

MAIN  FUNCTIONS
  • Bluetooth Port
  • Non-standard CTCSS / DCS
  • DTMF Encode And Decode
  • Wide / Narrow Bandwidth Selection(12.5 / 25 KHz)
  • Inspection , Monitor , Stun And Kill
  • 16 Groups of Banking , 256 Memory Channels
  • VOX Function
  • SOS Emergency Alarm
  • Single Tone Frequency 2100Hz / 1750Hz / 1450Hz / 1000Hz
  • Priority Channel Scan
  • Lamp
  • Scan Multi-definition , Channel Definition For Scan
  • Radio Direct Charging
  • DIY Extended Interface
  • PTT-ID
  • Superheterodyne Receiver Type

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas

   UHF : 420-520MHz / 400-480MHz
   400-470MHz / 350-390MHz
   VHF : 66-88MHz / 136-174MHz
   245-250MHz / 216-280MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 256
   Work Mode F2D/F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 340 g
   Size 62 x 37 x 132 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF10W / 4W / 1W , VHF 10W / 5W / 1W

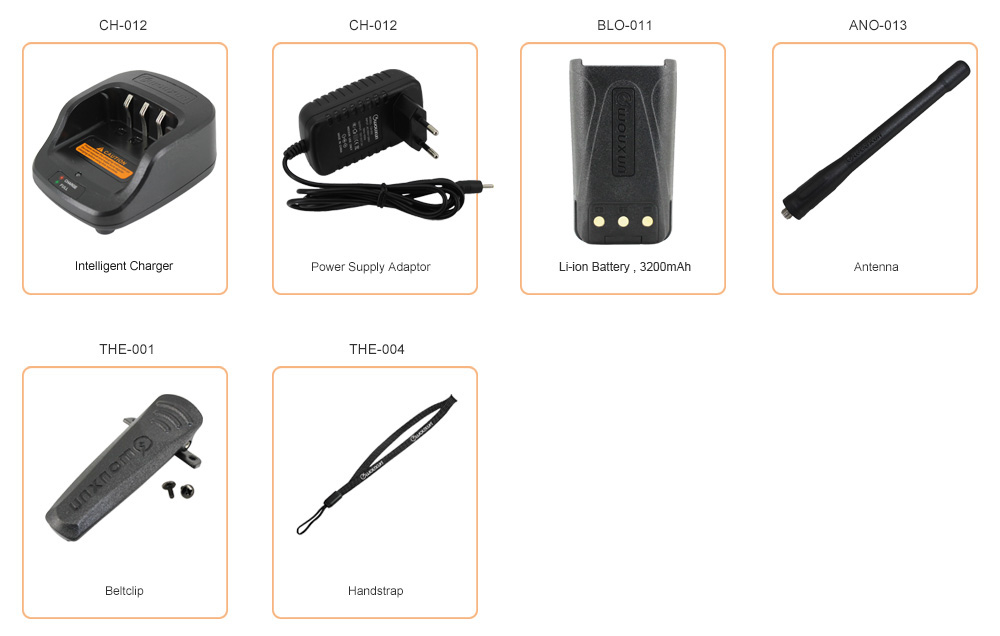

STANDARD  ACCESSORY
kg-968 accessory

OPTIONAL  ACCESSORY
BLO-025   CHA-027   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 3200mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-012
headset

earphone

headset

headset
Headset   Air Conduit Earphone   Headset   Bluetooth Headset

SMO-001   SMO-002   CHA-018   ELO-005
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-038   ANO-012   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor
