radio menu Radio Direct Charging , Wide Signal Coverage , Two Way Radio KG-958



  CLICK HERE CLOSE LIST radio list

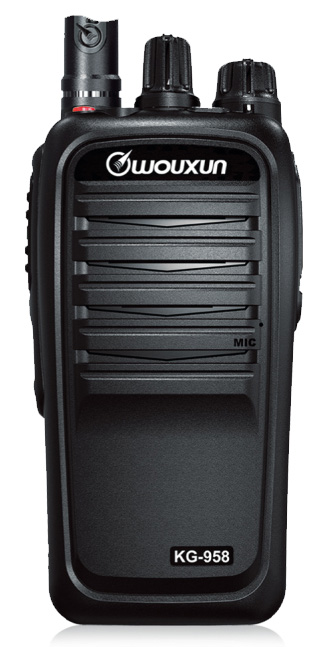

kg-958

MAIN FUNCTIONS
main function Editable fro non-standard tone(CTCSS/DCS)
main function DTMF encode and decode
main function Wide /narrow bandwidth selection(12.5KHz/25KHz)
main function High and stable output power(10Watts)
main function Inspection , monitor , stun and kill
main function 16 groups of banking , 256 memory channels
main function SOS and VOX Function
main function Emergency alarm
main function Single tone frequency 2100Hz / 1750Hz / 1450Hz / 1000Hz
main function Priority channel scan
main function Lamp
main function Scan Multi-definition , channel definition for scan
main function Radio direct charging
main function DIY extended interface
main function PTT-ID
order radios


TECHNICAL SPECIFICATION
Intergration
   Frequency Range

   suitable for different countries or areas

   UHF : 420-520MHz / 400-480MHz
   400-470MHz / 350-390MHz
   VHF : 66-88MHz / 136-174MHz
   245-250MHz / 216-280MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 256
   Work Mode F2D/F3E
   Operating Temperature -20℃~+40℃
   Voltage 7.4VDC
   Antenna Impedance 50Ω
   Weight 340 g
   Size 62 x 37 x 132 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power ≤500mW
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5PPM
   Audio Distortion ≤5%
   Output Power UHF10W / 4W / 1W , VHF 10W / 5W / 1W


STANDARD ACCESSORY
kg-958 accessory

I would like to buy KG-958 , quantity :
please use following information contact me as soon as possible
 Fields marked with an asterisk (*) are required

Your Name (*)   Your Email(*)   Something You Want to Say


Phone Number


Company Name


Company Address



send cancel
sending

send
