radio menu Two Way Radio KG-859



  CLICK HERE CLOSE LIST radio list

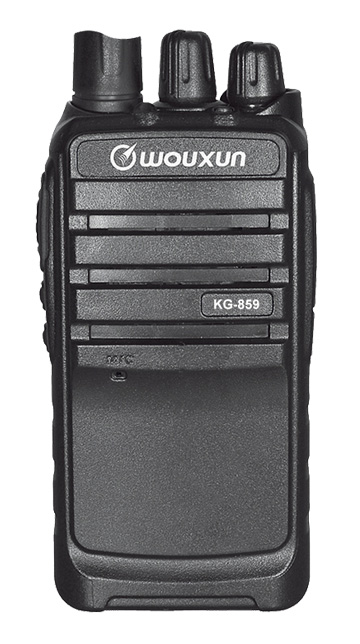

kg-859





MAIN FUNCTIONS
main function All calls, group calls and selective calls
main function Inspection, monitor, stun, kill and emergency alarm
main function 105 groups DCS/ 50 groups CTCSS
main function Distant alarm / SOS function
main function Voice prompt
main function Multi scan mode(TO/CO/SE)
main function Busy channel lockout
main function Wire-clone function
main function Bright flashlight illumination function
main function Program by computer
order radios


TECHNICAL SPECIFICATION
   Frequency Ranges    VHF: 66-88 / 136-174 / 216-280MHz
   UHF: 400-470 / 400-480 / 420-520 / 450-520MHz
   Channel Spacing Wide:25KHz / Narrow:12.5KHz
   Output Power VHF:5W/1W   UHF:4W/1W
   Memory Channels 16
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation ≤-60dB
   Waterproof IP55

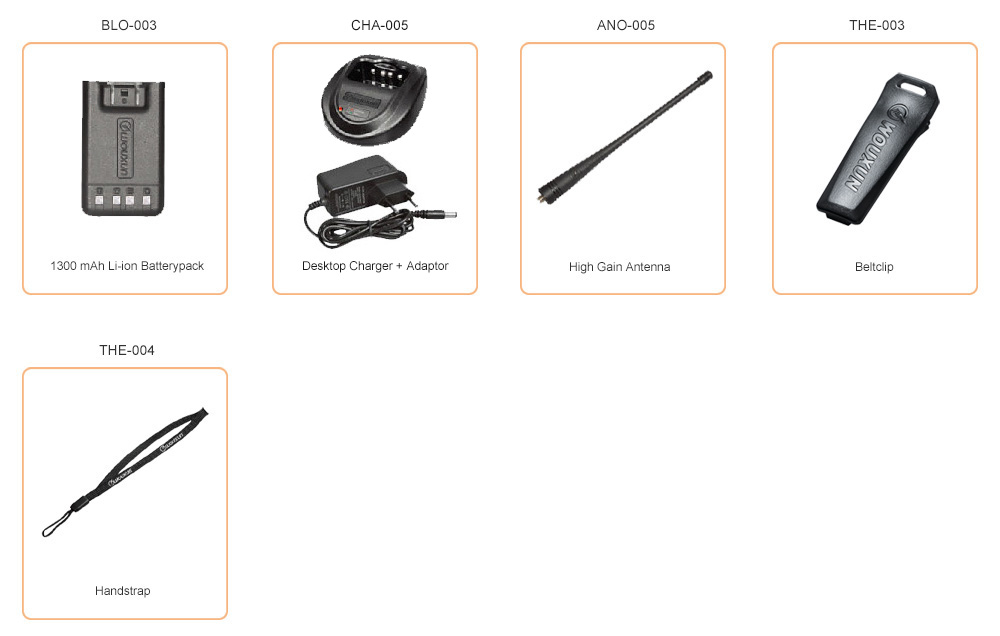

STANDARD ACCESSORY
859 accessory
