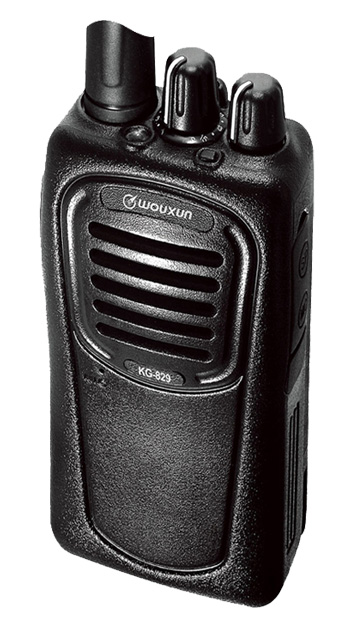

radio menu Two Way Radio KG-829



  CLICK HERE CLOSE LIST radio list


kg-829





MAIN FUNCTIONS
main function 1750Hz Tone
main function DTMF encoding and decoding
main function All calls, group calls and selective calls
main function 105 groups DCS/50 groups CTCSS
main function Distant alarm
main function Voice prompt
main function Wide/Narrow bandwidth selection
main function Multi scan mode (TO/CO/SE)
main function Call ringing
main function VOX (level adjustable)
main function Battery capacity prompt
main function TOT (time-out timer)
main function Busy channel lockout
main function Wireclone function
main function PC program
main function Bright flashlight illumination function
order radios


TECHNICAL SPECIFICATION
   Frequency Ranges    VHF: 66-88/136-174/245-250/216-280MHz
   UHF: 400-470/350-390/400-480/420-520MHz
   Channel Spacing Wide:25KHz / Narrow:12.5KHz
   Output Power VHF:5W/1W   UHF:4W/1W
   Memory Channels 16
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Antenna Impedance 50Ω
   Size 57 x 33 x 100 (mm)
   Audio Distortion ≤5%
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Adjacent Channel Selection ≥65 dB
   Frequency Stability ±2.5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation ≤-60dB
   Waterproof IP55
   Weight 206 g



STANDARD ACCESSORY
829 accessory
