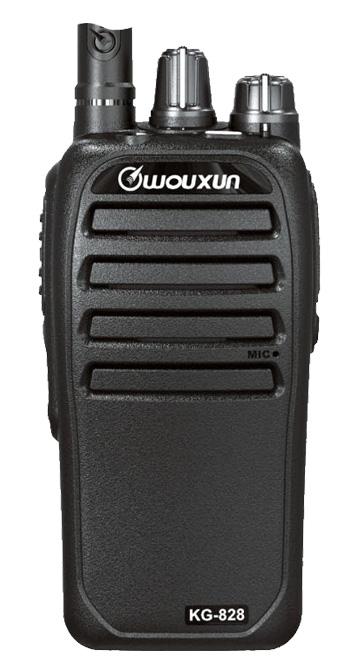

radio menu Wide Signal Coverage , IP66 Water Proof , Two Way Radio KG-828



  CLICK HERE CLOSE LIST radio list


kg-d901

MAIN FUNCTIONS
main function VOX Function
main function CTCSS/DCS
main function Chinese and English Voice Guide
main function Wide /narrow bandwidth selection(12.5KHz/25KHz)
main function High / Middle / Low Output Power Selectable
main function High Battery Capacity , 3200mAh
main function Intellingent Charger (Bicolor Light)
main function Multi scan mode
main function Busy channel lockout
main function Low Voltage Prompt
main function Transmit Overtime Prompt
main function PC Programmable
main function Adding Channel Scanning
order radios


TECHNICAL SPECIFICATION
   Ranges 400 - 480MHz or 136 - 174MHz
   Channel Numbers 16
   Openating Mode Co-channel or Dis-channel Simplex
   Output Power UFH  H:8W , M:4W , L:1W
   Voltage(DC) 7.4V
   Working Temperature -30℃ ~ +60℃
   Modulation Type FM(F3E)
   Max. Frequency Deviation ≤±5KHz
   Frequency Stability ±5ppm
   Sensitivity (12dB SINAD) ≤0.2µV
   Audio Output power ≥500mW
   Spurious Radiation < -60dB
   WaterProof IP66
   Weight 320 g
   Size 132 x 62 x 37 (mm)


STANDARD ACCESSORY
uv8d accessory
